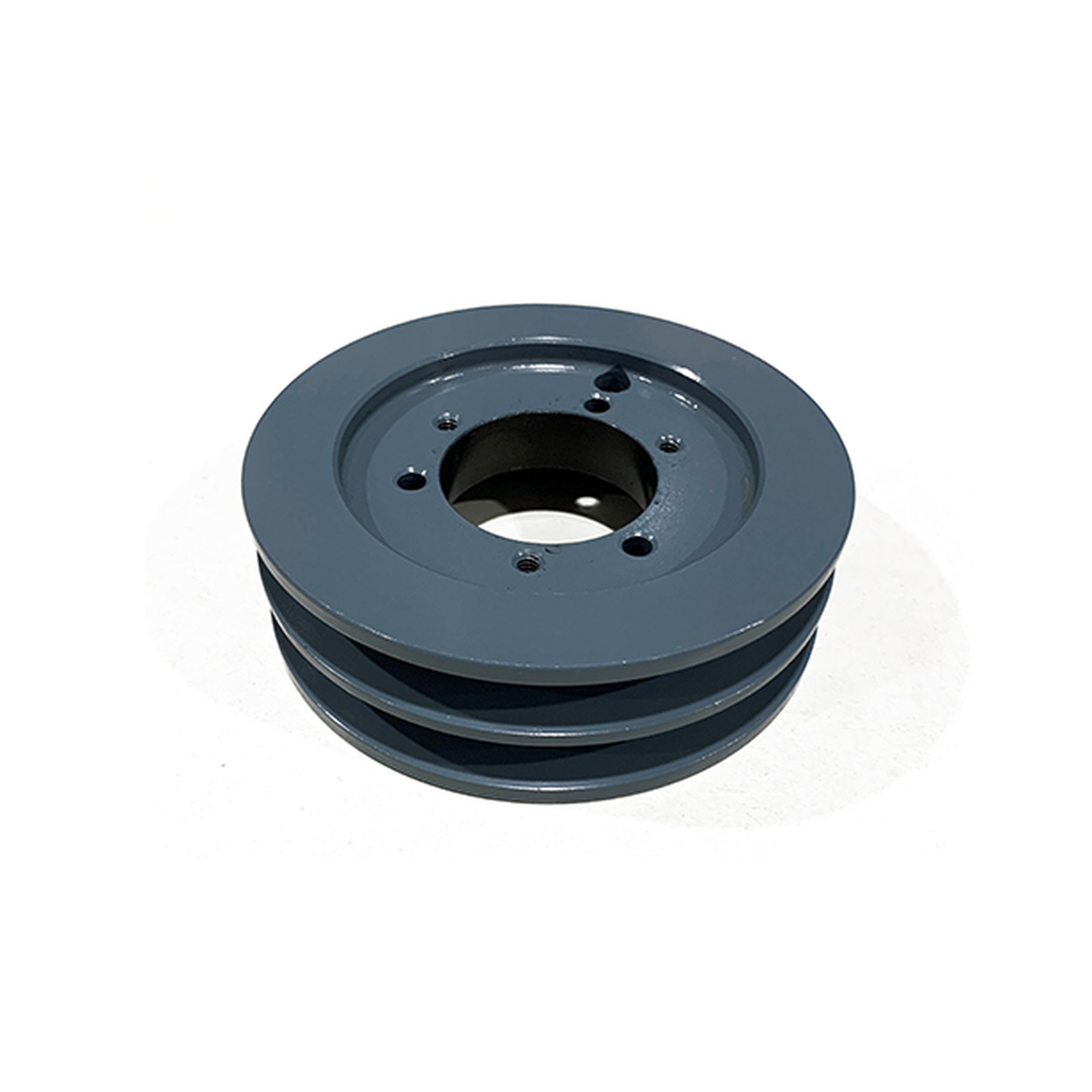

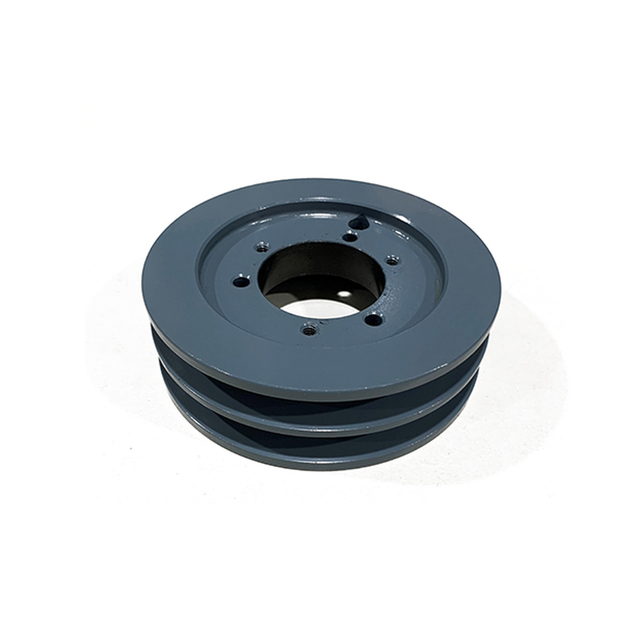

2B42SH, Transmission Pulley; 2 Grooves; 4.55" Outside Diameter; Bushed; SH Bushing Series; A | B Belt Series; 3.8" Pitch Minimum; 4.2" Pitch Maximum; 7/16 To 1-11/16" Bushing Bore Range; Keyway

2B42SH, Transmission Pulley; 2 Grooves; 4.55" Outside Diameter; Bushed; SH Bushing Series; A | B Belt Series; 3.8" Pitch Minimum; 4.2" Pitch Maximum; 7/16 To 1-11/16" Bushing Bore Range; Keyway

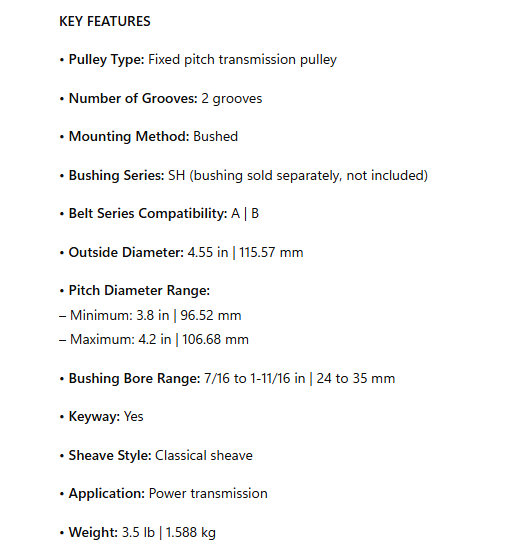

KEY FEATURES

• Pulley Type: Fixed pitch transmission pulley

• Number of Grooves: 2 grooves

• Mounting Method: Bushed

• Bushing Series: SH (bushing sold separately, not included)

• Belt Series Compatibility: A | B

• Outside Diameter: 4.55 in | 115.57 mm

• Pitch Diameter Range:
– Minimum: 3.8 in | 96.52 mm
– Maximum: 4.2 in | 106.68 mm

• Bushing Bore Range: 7/16 to 1-11/16 in | 24 to 35 mm

• Keyway: Yes

• Sheave Style: Classical sheave

• Application: Power transmission

• Weight: 3.5 lb | 1.588 kg
