2B36SH, Transmission Pulley; 2 Grooves; 3.95" Outside Diameter; Bushed; SH Bushing Series; A | B Belt Series; 3.2" Pitch Minimum; 3.6" Pitch Maximum; 1/2 To 1-11/16" Bushing Bore Range; Keyway

2B36SH, Transmission Pulley; 2 Grooves; 3.95" Outside Diameter; Bushed; SH Bushing Series; A | B Belt Series; 3.2" Pitch Minimum; 3.6" Pitch Maximum; 1/2 To 1-11/16" Bushing Bore Range; Keyway

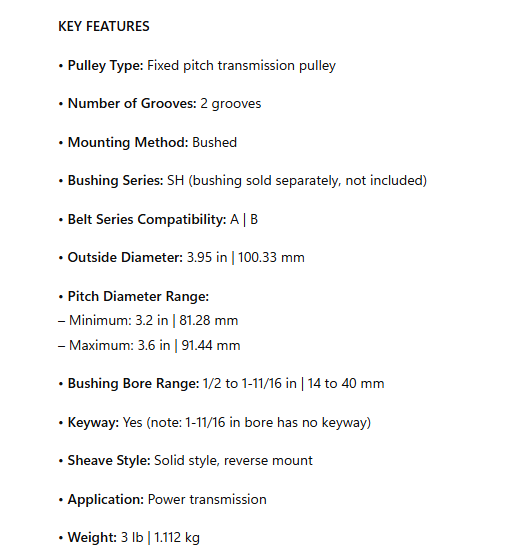

KEY FEATURES

• Pulley Type: Fixed pitch transmission pulley

• Number of Grooves: 2 grooves

• Mounting Method: Bushed

• Bushing Series: SH (bushing sold separately, not included)

• Belt Series Compatibility: A | B

• Outside Diameter: 3.95 in | 100.33 mm

• Pitch Diameter Range:
– Minimum: 3.2 in | 81.28 mm
– Maximum: 3.6 in | 91.44 mm

• Bushing Bore Range: 1/2 to 1-11/16 in | 14 to 40 mm

• Keyway: Yes (note: 1-11/16 in bore has no keyway)

• Sheave Style: Solid style, reverse mount

• Application: Power transmission

• Weight: 3 lb | 1.112 kg
