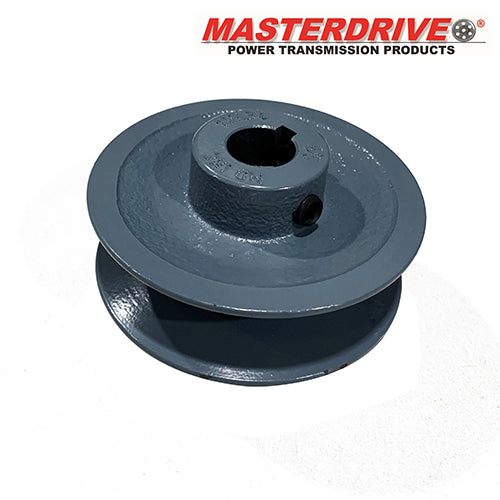

1VP56-1,Masterdrive,Dia 5.35'',Bore 1'',Variable Pitch Adjustable

E-Motor Nations

$49.95

1VP56-1,Masterdrive, Dia 5.35'', Bore 1'', Variable Pitch Adjustable,1 Groove,

SPECIFICATIONS

SET SCREW SIZE	5/16-18
A (4L) PITCH DIA. [MIN]	4.10 in
FINISHED BORE	1 in
3L PITCH [MAX]	4.800 in
BELT SIZE	3L / A or 4L / B or 5L
INCH/METRIC	Inch
SHEAVE CONSTRUCTION	A or B
NO. OF GROOVES	1
OUTSIDE DIA.	5.35 in
B (5L) PITCH DIA. [MAX]	5.2 in

MATERIAL	Cast Iron
A (4L) PITCH DIA. [MAX]	5.10 in
HUB O.D.	2 1/2 in
B (5L) PITCH DIA. [MIN]	4.2 in
SHEAVE TYPE	VP
BORE TYPE	Finished
3L PITCH [MIN]	4 in
WEIGHT	4.21 LB
