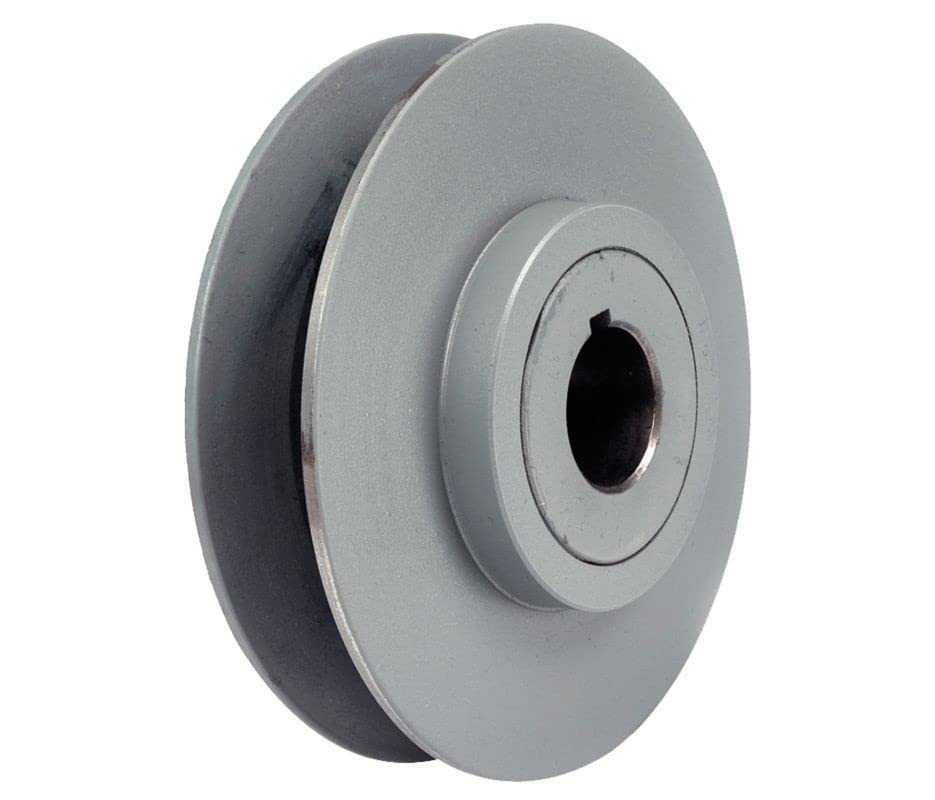

1VP44X1 Masterdrive, VP SERIES,CAST IRON, VARIABLE PITCH SHEAVE,

E-Motor Nations

$44.25

1VP44X1, Masterdrive, VP SERIES,CAST IRON, VARIABLE PITCH SHEAVE,

SPECIFICATIONS

TURNS OPEN (B OR 5L) (FOR MIN PD)	6
TURNS OPEN (3L) (FOR MIN PD)	4
TYPE OF BORE	Finished
TURNS OPEN (A OR 4L) (FOR MIN PD)	5
TURNS OPEN (B OR 5L) (FOR MAX PD)	1
PITCH DIAMETER (3L) (MAX)	3.5
PITCH DIAMETER (3L) (MIN)	2.7

BELT SECTION	3L, 4L or A, 5L or B
NUMBER OF GROOVES	1
OUTSIDE DIAMETER (IN)	4.15
BORE (IN)	1.000
MATERIAL	Cast Iron
WEIGHT	2.77 LB

PRODUCT DETAILS

1.000 Bore (in)

DESCRIPTION

All fitted with hollow head setscrews. Any standard one groove O, A, B or 5V Browning sheave can be used as a companion sheave.

APPLICATIONS

Conveyors
Pumps
Fans
Mixers
Ventilators

FEATURES

Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6" to 8.5" covering up to 25 horsepower.
