CENTURY | SKU:
EMN-016612

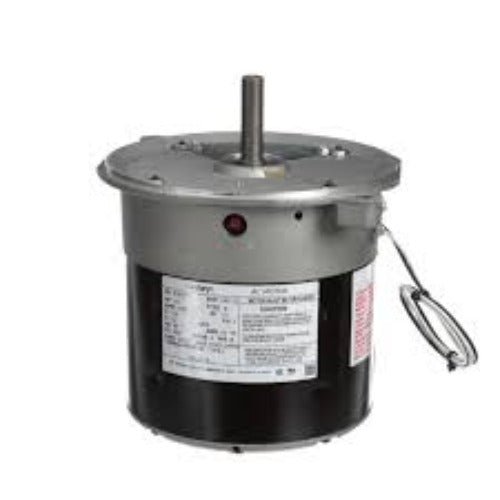

XEL2014, CENTURY , 1/6 HP 1725 RPM, 115V, FR: 48N, TEAO, 3.2A
Regular price
$337.92
Unit price
/
Unavailable
XEL2014, CENTURY , 1/6 HP 1725 RPM, 115V, FR: 48N, TEAO, 3.2A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![XEL2014, CENTURY , 1/6 HP 1725 RPM, 115V, FR: 48N, TEAO, 3.2A - HVAC ELECTRIC MOTOR - CENTURY - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur - fan](http://www.emotornations.com/cdn/shop/products/6a14fee6-e6a9-4f41-9f91-ec01a4e7ce74.jpg?v=1756414557&width=112)
XEL2014, CENTURY , 1/6 HP 1725 RPM, 115V, FR: 48N, TEAO, 3.2A
Regular price
$337.92
Unit price
/
Unavailable
Description
Description
XEL2014, CENTURY,
Nameplate Specifications
| Output HP: | 1/6 Hp | Output KW: | 0.13 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 3.2 A | Speed: | 1725 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 48N | Enclosure: | Totally Enclosed |
| Thermal Protection: | Manual | Ambient Temperature: | 40 °C |
| UL: | No | CSA: | N |
| CE: | N |
Technical Specifications
| Electrical Type: | Split Phase | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Mounting: | N | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Rolled Steel |
| Shaft Type: | Flat | Overall Length: | 7.66 in |
| Frame Length: | 3.69 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 1.82 in |
