CENTURY  |  SKU: EMN-017387

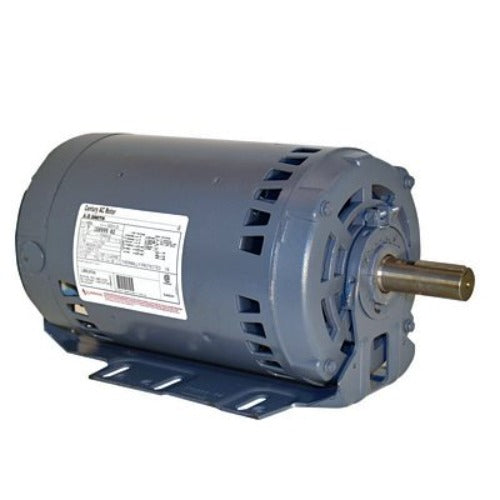

H954, 3Hp,3450 Rpm,575 volts,Frame: 56HZ,(7/8''Shaft),Odp,Hvac,3Ph,

$897.00
shipping

Estimate shipping

Description

 H954, Century, A.O Smith,

Nameplate Specifications

Phase: 3 Output HP: 3.0 Hp
Output KW: 2.2 kW Voltage: 575 V
Speed: 3450 rpm Service Factor: 1.15
Frame: P56HZ Enclosure: Open Enclosed
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 3.6 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Counterclockwise
Mounting: Cushion Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 13.81 in
Frame Length: 8.00 in Shaft Diameter: 0.875 in
Shaft Extension: 2.31 in

General Specifications

UPC: 786674024831 Weight: 37.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.00 IN
Packaged Height: 8.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
