CENTURY | SKU:
EMN-016829
Sold out

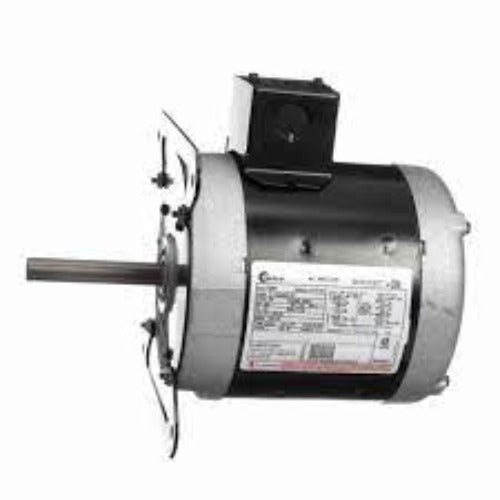

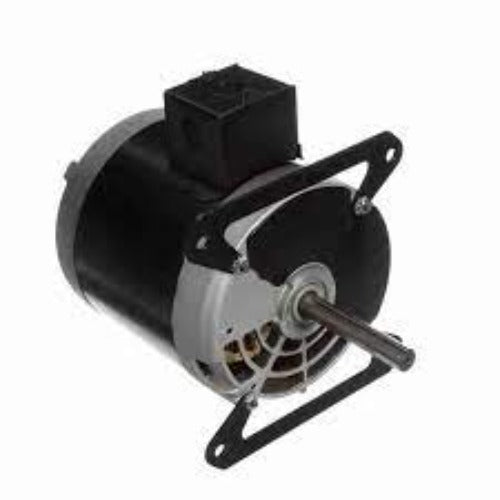

F269, Century, 3/4 Hp, 1725 Rpm, 115/230V, Fr:56Y, Odp, 1Ph,Oven motor
Regular price
$1,173.20
Unit price
/
Unavailable
F269, Century, 3/4 Hp, 1725 Rpm, 115/230V, Fr:56Y, Odp, 1Ph,Oven motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
Description
Description
F269, Century, Ao Smith,
Nameplate Specifications
| Output HP: | 3/4 Hp | Output KW: | 0.56 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 9.6/4.8 A | Speed: | 1725 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | A56Y | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 60 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Split Phase, Induction Run, Single Or Dual Voltage | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible Clockwise |
| Mounting: | Round | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Keyed | Overall Length: | 10.87 in |
| Frame Length: | 4.38 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 3.5 in |
