EM3585, Fan and Blower Motor, 1/3Hp, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, OPEN, SS3585 , DD-3585

EM3585, Fan and Blower Motor, 1/3Hp, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, OPEN, SS3585 , DD-3585

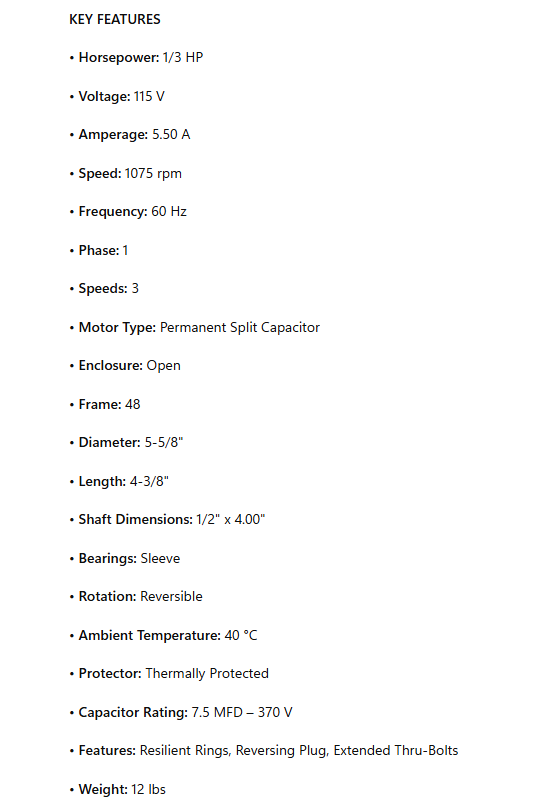

KEY FEATURES

• Horsepower: 1/3 HP

• Voltage: 115 V

• Amperage: 5.50 A

• Speed: 1075 rpm

• Frequency: 60 Hz

• Phase: 1

• Speeds: 3

• Motor Type: Permanent Split Capacitor

• Enclosure: Open

• Frame: 48

• Diameter: 5-5/8"

• Length: 4-3/8"

• Shaft Dimensions: 1/2" x 4.00"

• Bearings: Sleeve

• Rotation: Reversible

• Ambient Temperature: 40 °C

• Protector: Thermally Protected

• Capacitor Rating: 7.5 MFD – 370 V

• Features: Resilient Rings, Reversing Plug, Extended Thru-Bolts

• Weight: 12 lbs

CROSS REFERENCE

• DD-3585

• 3585

• SS3585

• L06G007

• 5KCP39HGAA49S
