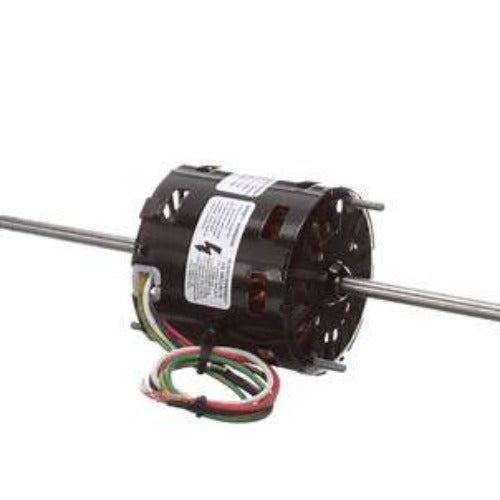

359, HVAC/R Motors, 1/20Hp, 115V, 1550RPM, 1Ph, 60Hz, OAO, CCWLE, 3.3″ Dia.

359, HVAC/R Motors, 1/20Hp, 115V, 1550RPM, 1Ph, 60Hz, OAO, CCWLE, 3.3″ Dia.

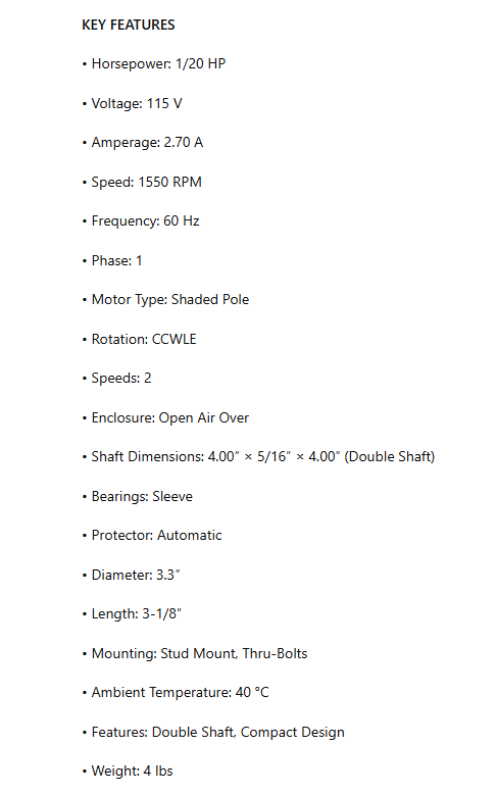

KEY FEATURES

• Horsepower: 1/20 HP

• Voltage: 115 V

• Amperage: 2.70 A

• Speed: 1550 RPM

• Frequency: 60 Hz

• Phase: 1

• Motor Type: Shaded Pole

• Rotation: CCWLE

• Speeds: 2

• Enclosure: Open Air Over

• Shaft Dimensions: 4.00″ × 5/16″ × 4.00″ (Double Shaft)

• Bearings: Sleeve

• Protector: Automatic

• Diameter: 3.3″

• Length: 3-1/8″

• Mounting: Stud Mount, Thru-Bolts

• Ambient Temperature: 40 °C

• Features: Double Shaft, Compact Design

• Weight: 4 lbs

CROSS REFERENCE

• D359

• R3-R359
