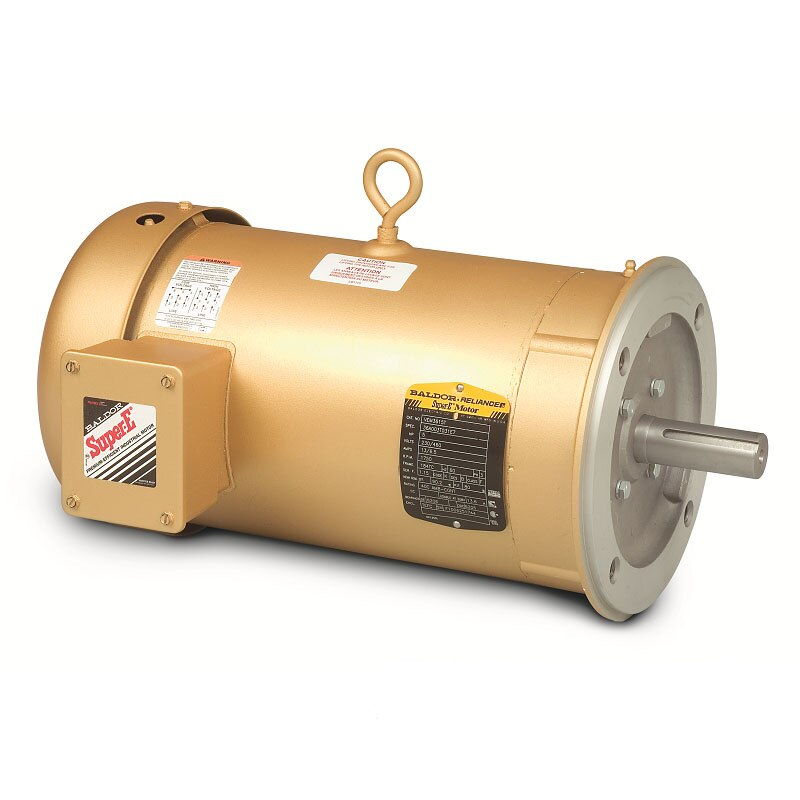

VEM3558-5, 2Hp, 1764 RPM, 575V, 3Ph, 60Hz, Frame 56C, TEFC, F1, 35A013G113G1

VEM3558-5, 2Hp, 1764 RPM, 575V, 3Ph, 60Hz, Frame 56C, TEFC, F1, 35A013G113G1

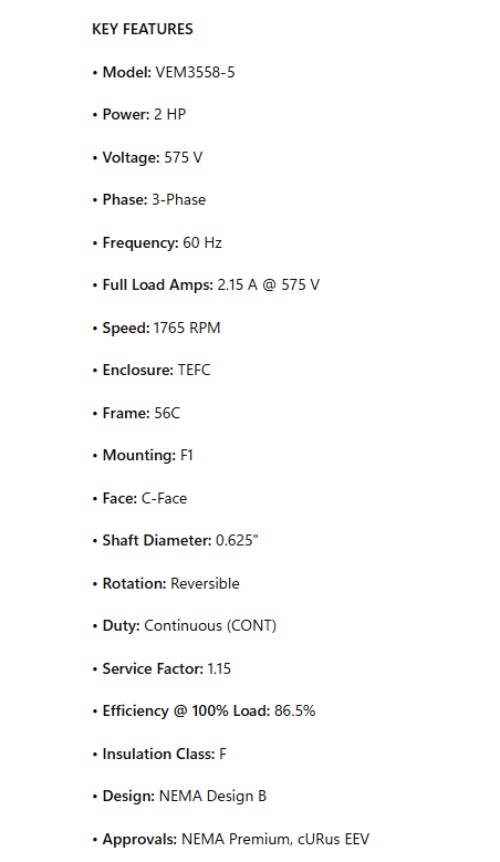

KEY FEATURES

• Model: VEM3558-5

• Power: 2 HP

• Voltage: 575 V

• Phase: 3-Phase

• Frequency: 60 Hz

• Full Load Amps: 2.15 A @ 575 V

• Speed: 1765 RPM

• Enclosure: TEFC

• Frame: 56C

• Mounting: F1

• Face: C-Face

• Shaft Diameter: 0.625"

• Rotation: Reversible

• Duty: Continuous (CONT)

• Service Factor: 1.15

• Efficiency @ 100% Load: 86.5%

• Insulation Class: F

• Design: NEMA Design B

• Approvals: NEMA Premium, cURus EEV
