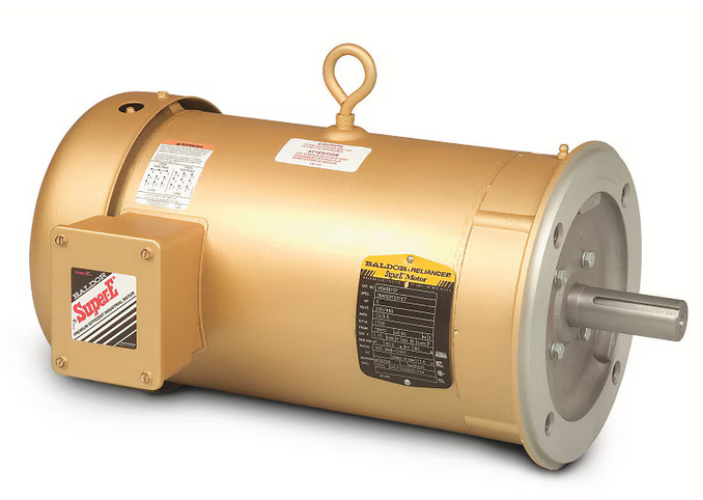

VEM3555T, 2Hp, 3490 RPM, 208-230/460V, 3Ph, 60Hz, Frame 143TC, TEFC, 3526M, F1

VEM3555T, 2Hp, 3490 RPM, 208-230/460V, 3Ph, 60Hz, Frame 143TC, TEFC, 3526M, F1

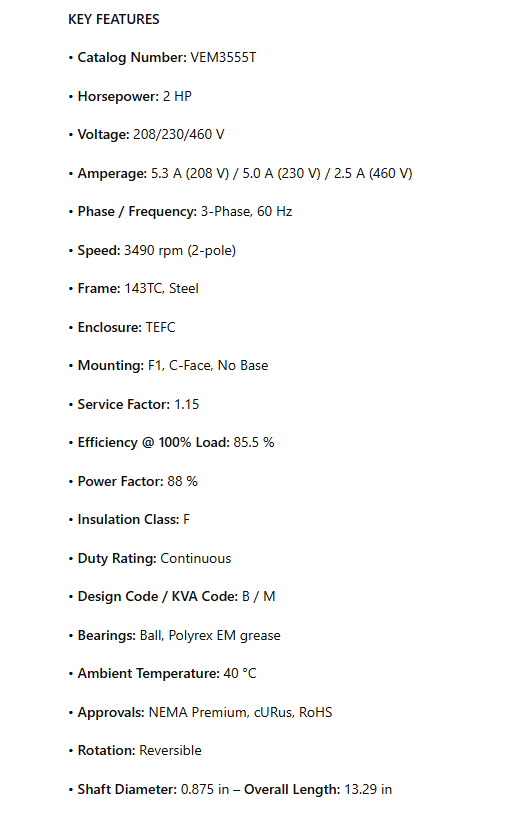

KEY FEATURES

• Catalog Number: VEM3555T

• Horsepower: 2 HP

• Voltage: 208/230/460 V

• Amperage: 5.3 A (208 V) / 5.0 A (230 V) / 2.5 A (460 V)

• Phase / Frequency: 3-Phase, 60 Hz

• Speed: 3490 rpm (2-pole)

• Frame: 143TC, Steel

• Enclosure: TEFC

• Mounting: F1, C-Face, No Base

• Service Factor: 1.15

• Efficiency @ 100% Load: 85.5 %

• Power Factor: 88 %

• Insulation Class: F

• Duty Rating: Continuous

• Design Code / KVA Code: B / M

• Bearings: Ball, Polyrex EM grease

• Ambient Temperature: 40 °C

• Approvals: NEMA Premium, cURus, RoHS

• Rotation: Reversible

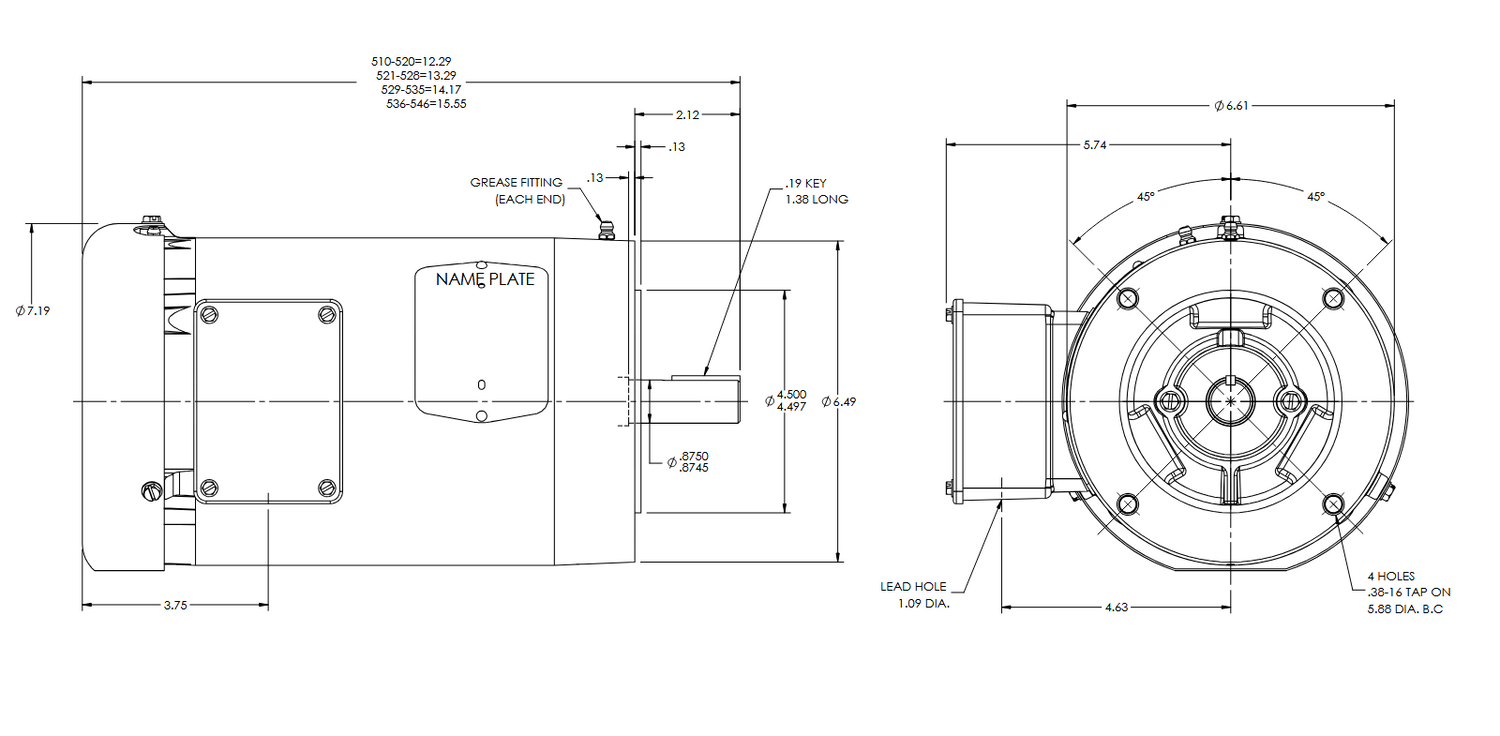

• Shaft Diameter: 0.875 in – Overall Length: 13.29 in
