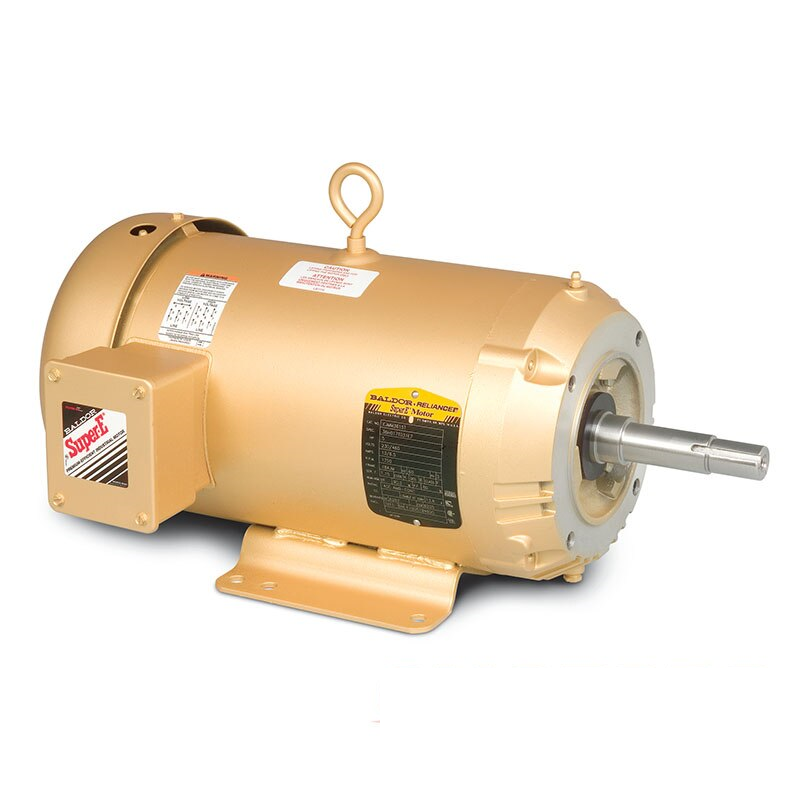

VEJMM3615T, Pump Motor, 5Hp, 1755 RPM, 230/460V, 3 Ph, 60 HZ, Frame 184JM, TEFC, 36S067Q032G1

VEJMM3615T, Pump Motor, 5Hp, 1755 RPM, 230/460V, 3 Ph, 60 HZ, Frame 184JM, TEFC, 36S067Q032G1

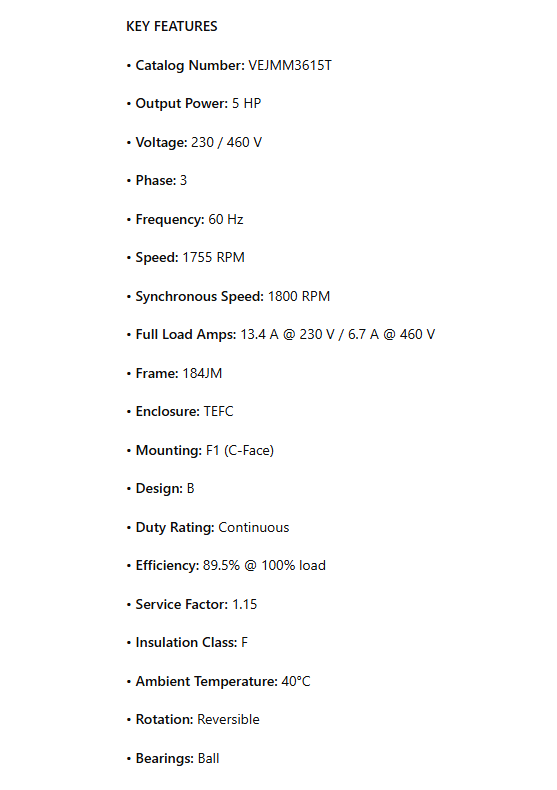

KEY FEATURES

• Catalog Number: VEJMM3615T

• Output Power: 5 HP

• Voltage: 230 / 460 V

• Phase: 3

• Frequency: 60 Hz

• Speed: 1755 RPM

• Synchronous Speed: 1800 RPM

• Full Load Amps: 13.4 A @ 230 V / 6.7 A @ 460 V

• Frame: 184JM

• Enclosure: TEFC

• Mounting: F1 (C-Face)

• Design: B

• Duty Rating: Continuous

• Efficiency: 89.5% @ 100% load

• Service Factor: 1.15

• Insulation Class: F

• Ambient Temperature: 40°C

• Rotation: Reversible

• Bearings: Ball
