M3463, General Purpose Motor, 0.75Hp, 3540RPM, 230/460V, 3Ph, 60Hz, Frame 48, TEFC, F1, 34A51-255

M3463, General Purpose Motor, 0.75Hp, 3540RPM, 230/460V, 3Ph, 60Hz, Frame 48, TEFC, F1, 34A51-255

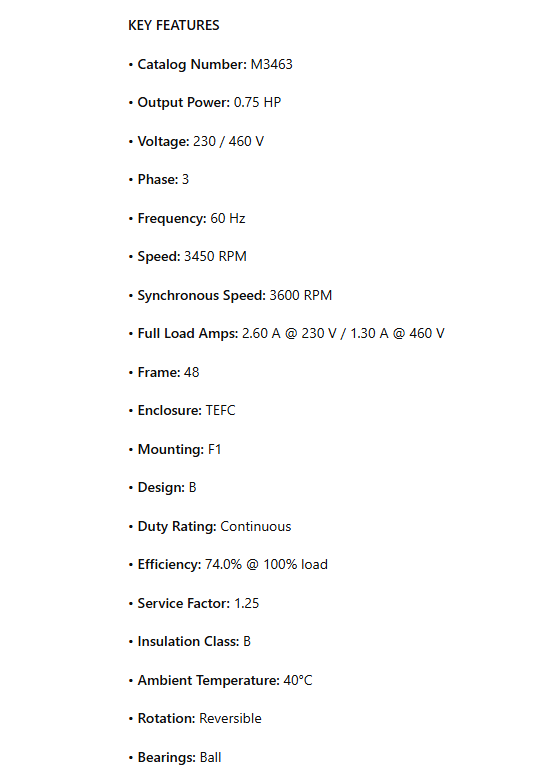

KEY FEATURES

• Catalog Number: M3463

• Output Power: 0.75 HP

• Voltage: 230 / 460 V

• Phase: 3

• Frequency: 60 Hz

• Speed: 3450 RPM

• Synchronous Speed: 3600 RPM

• Full Load Amps: 2.60 A @ 230 V / 1.30 A @ 460 V

• Frame: 48

• Enclosure: TEFC

• Mounting: F1

• Design: B

• Duty Rating: Continuous

• Efficiency: 74.0% @ 100% load

• Service Factor: 1.25

• Insulation Class: B

• Ambient Temperature: 40°C

• Rotation: Reversible

• Bearings: Ball
