BALDOR  |  SKU: EMN-016951

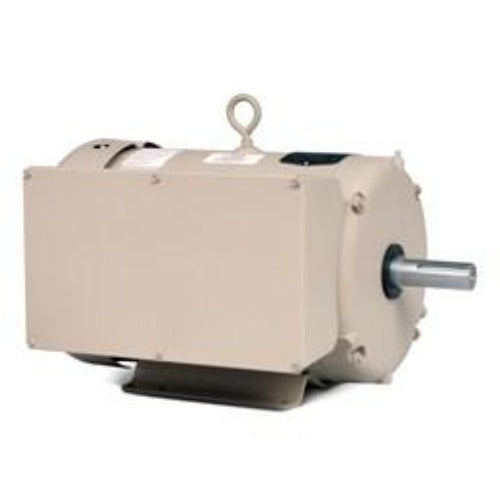

FDL3733TM, Baldor, 7.5 Hp, 1730 Rpm, 230V,37N371T879G1, Fr:213T, TEFC,

$1,947.97
shipping

Estimate shipping

Description

FDL3733TM, Baldor, 37N371T879G1, Z122, Part 215TBFW7029,

CAT.NO. FDL3733TM
SPEC. 37N371T879G1
HP 7.5
VOLTS 230
AMP 30
RPM 1730
FRAME 213T HZ 60 PH 1
SER.F. 1.00 CODE H DES L CL F
NEMA-NOM-EFF 84 PF 97
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6307 ODE 6206
ENCL TEFC


Performance at 230 V, 60 Hz, 7.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C0.199 Ohms A Ph / 0.516 Ohms B Ph
Temp. Rise @ Rated Load87° C
Temp. Rise @ S.F. Load
Start ConfigurationDOL
Break-Down Torque81.3 LB-FT
Pull-Up Torque60 LB-FT
Locked-Rotor Torque88.4 LB-FT
Starting Current222.4 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 38.0 79.0 90.0 94.0 96.0 96.0 96.0 0.0
Efficiency 0.0 68.0 81.1 84.7 85.2 83.8 80.6 0.0
Speed (RPM) 1,799 1,782 1,767 1,750 1,731 1,708 1,680 0
Line Amps 8.67 11.30 16.50 22.60 29.60 37.50 46.90 0.00



Part Number Description Quantity
OC3050F09SP CAPACITOR 50 MFD 370 VAC 1.000 EA
OC3040F18SP 7YL OIL CAP 40MFD/370V 1.000 EA
TPLED1024SP THERMAL 1PH 1.5 MAN REF LED945 TDR #5817 1.000 EA
EC1189C06SP ELEC CAP, 189-227 MFD, 250V, 2.06D X 4. 2.000 EA
EC1161C06SP ELEC CAP, 161-193 MFD, 250V, 2.06D X 4. 2.000 EA
37FN3002A01SP EXFN, PLASTIC, 9.00 OD, 1.155 ID 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 1/21 1.000 EA
