BALDOR  |  SKU: EMN-016396

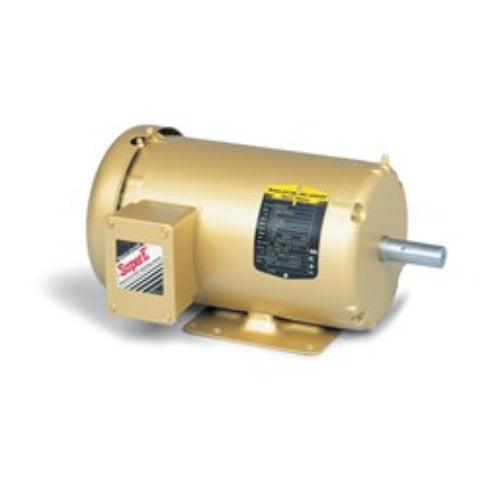

EM3558, 2Hp, 1760 RPM, 230/460 V, 3 Ph, 60 Hz, TEFC, Frame 56, 35A011Z165

Regular price $1,061.02
Shipping calculated at checkout.



shipping

Estimate shipping

Description

This three‑phase AC motor is designed for general industrial use, offering dual‑voltage capability and a totally enclosed fan‑cooled enclosure in a compact 56 frame.

KEY FEATURES

• Model: EM3558

• Horsepower: 2.000 Hp

• Voltage: 230/460 V @ 60 Hz – 3 Phase

• Speed: 1760 RPM @ 60 Hz

• Frame: 56

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.15

• Efficiency: 86.5 %

• Power Factor: 78 %

• Current: 5.2 A @ 230 V / 2.6 A @ 460 V

• Duty: Continuous

• Insulation Class: F

• Design Code: B – KVA Code K

• Mounting: F1 (rigid base)

• Shaft: 0.625 in diameter

• Bearings: Ball bearings (6205 DE & 6203 ODE)

• Frame Material: Steel

• Rotation: Reversible

• Inverter Duty: Inverter Ready (CT6‑60H 10:1 / VT3‑60H 20:1)

• Number of Speeds: 1

• Ambient Rating: 40 °C

• Special Feature: NEMA Premium efficiency

This motor’s dual‑voltage flexibility and TEFC design make it well‑suited for varied power environments while providing protection against dust and debris.

CROSS REFERENCE

• TF002404W01DOE

• EM3558-G

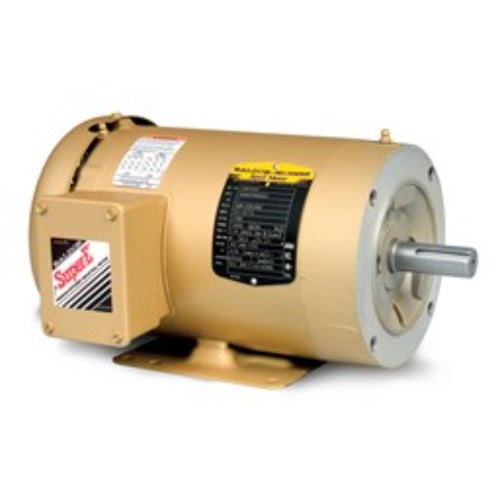

• CEM3558-G
