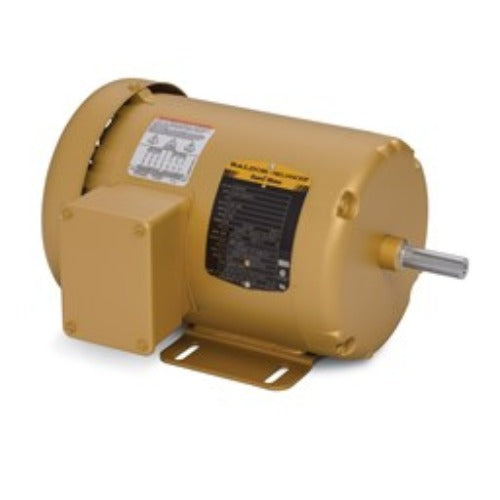

EM3546, Baldor, 1 HP, 1760 RPM, 230/460V, Fr: 56, 35A011M492G1, TEFC

BALDOR

$649.66

EM3546, BALDOR, SPEC 35A011M492G1,

CAT.NO.	EM3546
SPEC	35A011M492G1
HP	1
VOLTS	230/460
AMPS	3/1.5
RPM	1760
FRAME	56			HZ		60					PH		3
SF	1.15	CODE			L	DES		B	CLASS			F
NEMA NOM. EFF	85.5		PF		71
RATING	40C AMB-CONT
CC	010A		USABLE AT 208V							3.1
ENCL	TEFC	SER
DE	6205			ODE			6203
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
	50Hz 1HP 190/380V 3.6/1.8A													SF1.0
