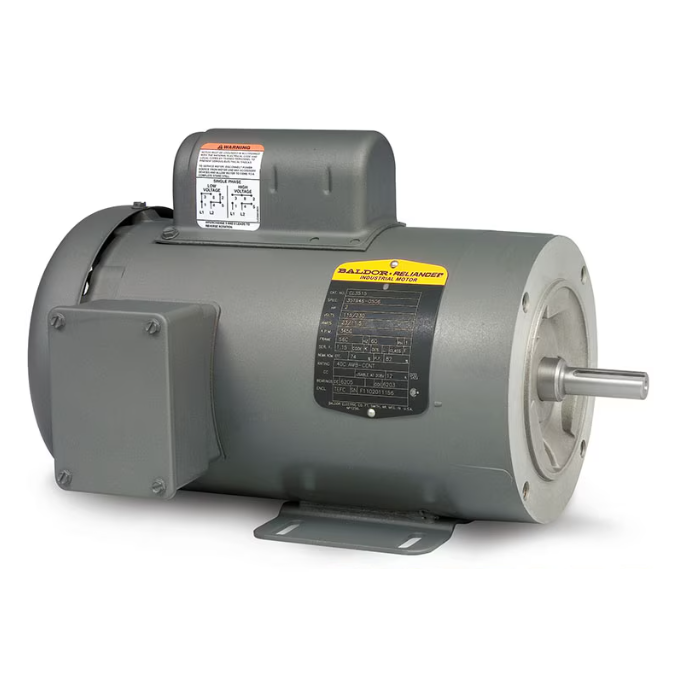

CL3501, 0.33Hp, 1725RPm, 115/208-230V, 1Ph, 60Hz, Frame 56C, TEFC, 34C62-5507

CL3501, 0.33Hp, 1725RPm, 115/208-230V, 1Ph, 60Hz, Frame 56C, TEFC, 34C62-5507

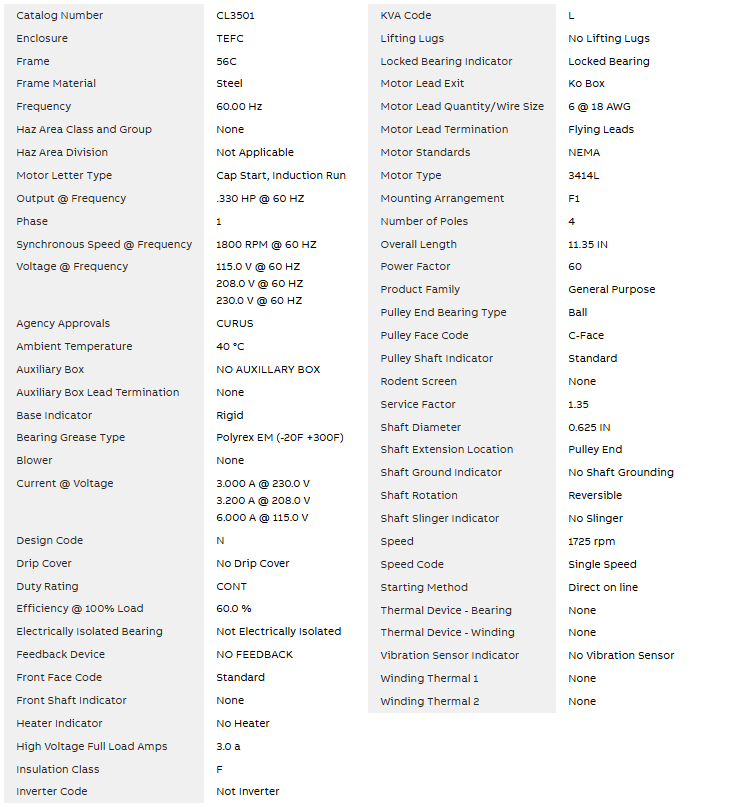

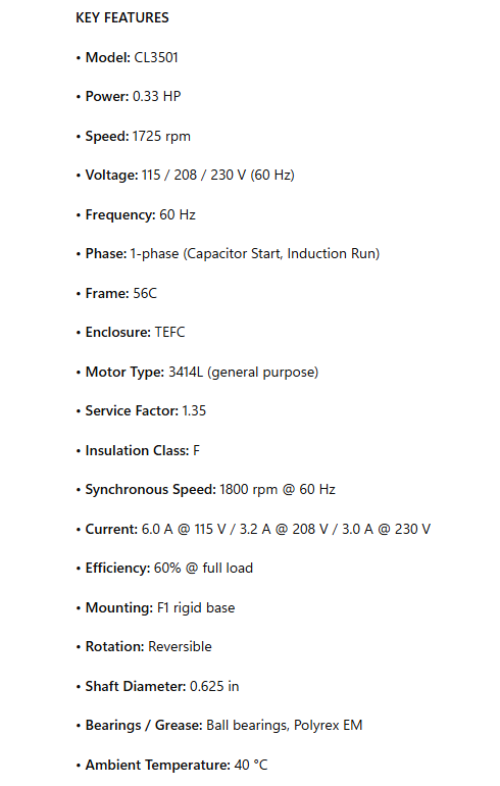

KEY FEATURES

• Model: CL3501

• Power: 0.33 HP

• Speed: 1725 rpm

• Voltage: 115 / 208 / 230 V (60 Hz)

• Frequency: 60 Hz

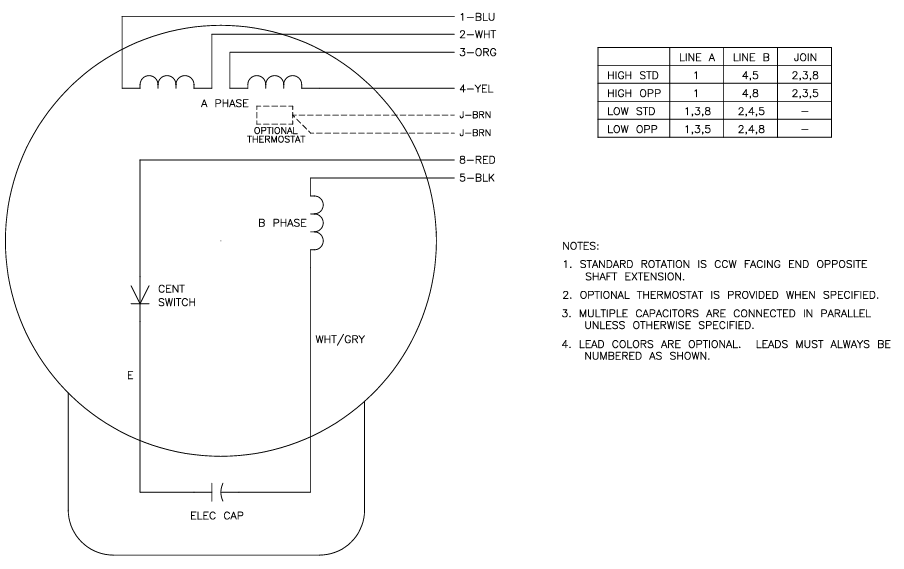

• Phase: 1-phase (Capacitor Start, Induction Run)

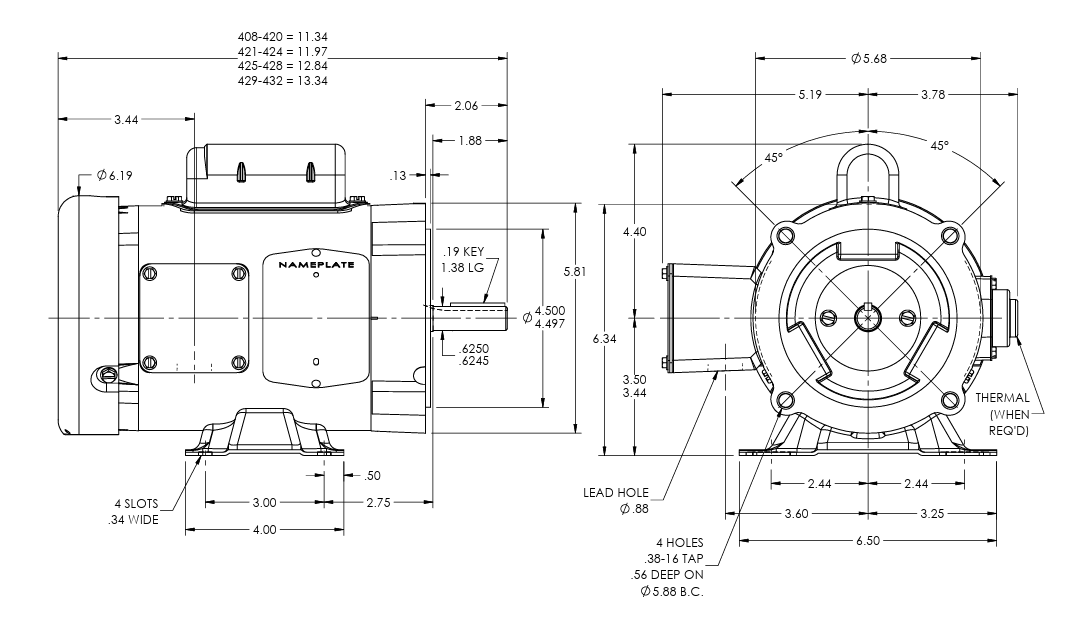

• Frame: 56C

• Enclosure: TEFC

• Motor Type: 3414L (general purpose)

• Service Factor: 1.35

• Insulation Class: F

• Synchronous Speed: 1800 rpm @ 60 Hz

• Current: 6.0 A @ 115 V / 3.2 A @ 208 V / 3.0 A @ 230 V

• Efficiency: 60% @ full load

• Mounting: F1 rigid base

• Rotation: Reversible

• Shaft Diameter: 0.625 in

• Bearings / Grease: Ball bearings, Polyrex EM

• Ambient Temperature: 40 °C
