BALDOR  |  SKU: EMN-019335

CECP3581T, 1Hp, 1770RPM, 3PH, 60HZ, 143TC, 208-230V/460V, TEFC, F1

$1,202.34
shipping

Estimate shipping

Description

CECP3581T, 1Hp, 1770RPM, 3PH, 60HZ, 143TC, 208-230V/460V, TEFC, F1

Replace : CEM3546T, CECP83581T-4, RF0014C, PDH0014C, PDH0014-C, BC4N001V4C, DA4N001V4C, CT000404NPW01, CT00404NPW22, IE00404W22CIS

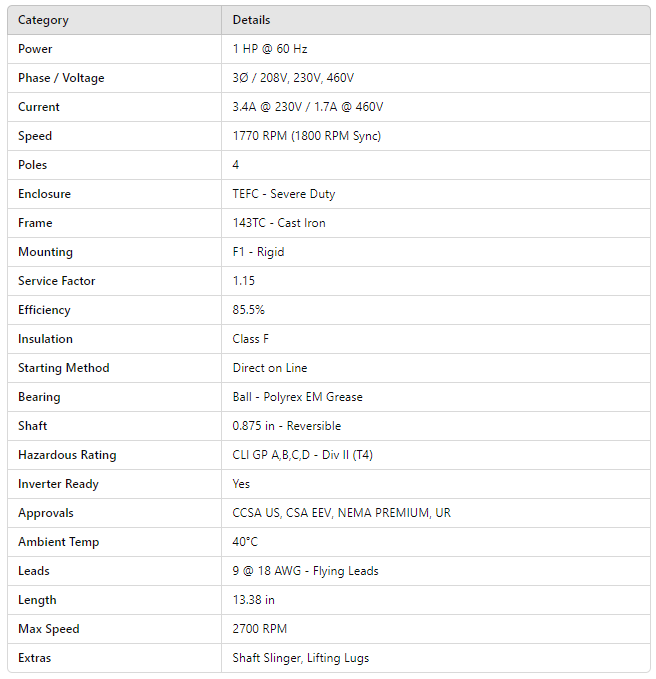

Category Details
Power 1 HP @ 60 Hz
Phase / Voltage 3Ø / 208V, 230V, 460V
Current 3.4A @ 230V / 1.7A @ 460V
Speed 1770 RPM (1800 RPM Sync)
Poles 4
Enclosure TEFC - Severe Duty
Frame 143TC - Cast Iron
Mounting F1 - Rigid
Service Factor 1.15
Efficiency 85.5%
Insulation Class F
Starting Method Direct on Line
Bearing Ball - Polyrex EM Grease
Shaft 0.875 in - Reversible
Hazardous Rating CLI GP A,B,C,D - Div II (T4)
Inverter Ready Yes
Approvals CCSA US, CSA EEV, NEMA PREMIUM, UR
Ambient Temp 40°C
Leads 9 @ 18 AWG - Flying Leads
Length 13.38 in
Max Speed 2700 RPM
Extras Shaft Slinger, Lifting Lugs
