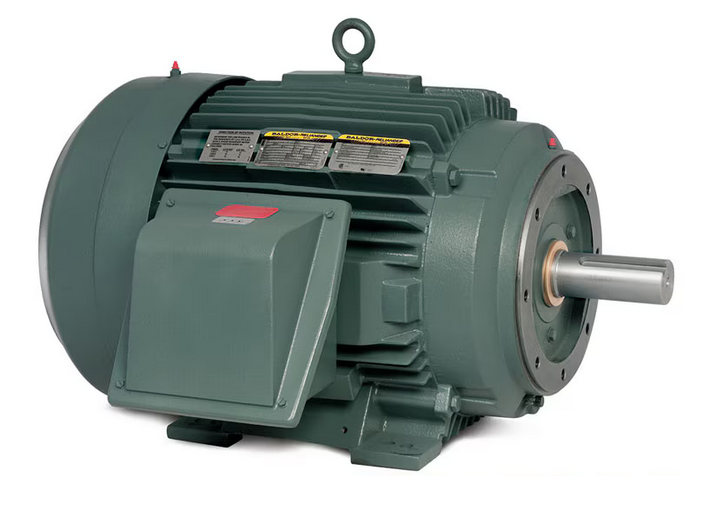

CECP2333T-5, 15Hp, 575, 1765RPM, 3PH, 60HZ, 254TC, 0944M, TEFC, F1

CECP2333T-5, 15Hp, 575, 1765RPM, 3PH, 60HZ, 254TC, 0944M, TEFC, F1

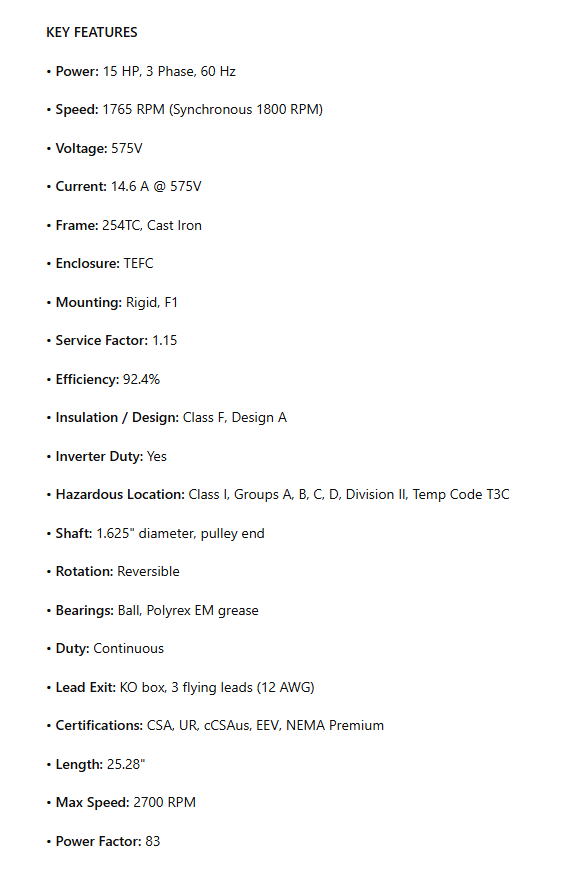

KEY FEATURES

• Power: 15 HP, 3 Phase, 60 Hz

• Speed: 1765 RPM (Synchronous 1800 RPM)

• Voltage: 575V

• Current: 14.6 A @ 575V

• Frame: 254TC, Cast Iron

• Enclosure: TEFC

• Mounting: Rigid, F1

• Service Factor: 1.15

• Efficiency: 92.4%

• Insulation / Design: Class F, Design A

• Inverter Duty: Yes

• Hazardous Location: Class I, Groups A, B, C, D, Division II, Temp Code T3C

• Shaft: 1.625" diameter, pulley end

• Rotation: Reversible

• Bearings: Ball, Polyrex EM grease

• Duty: Continuous

• Lead Exit: KO box, 3 flying leads (12 AWG)

• Certifications: CSA, UR, cCSAus, EEV, NEMA Premium

• Length: 25.28"

• Max Speed: 2700 RPM

• Power Factor: 83
