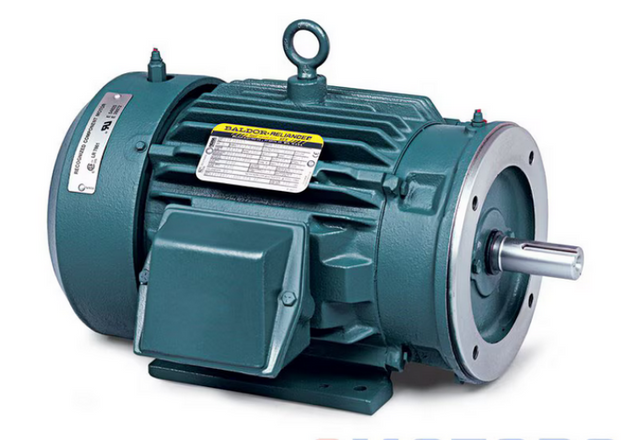

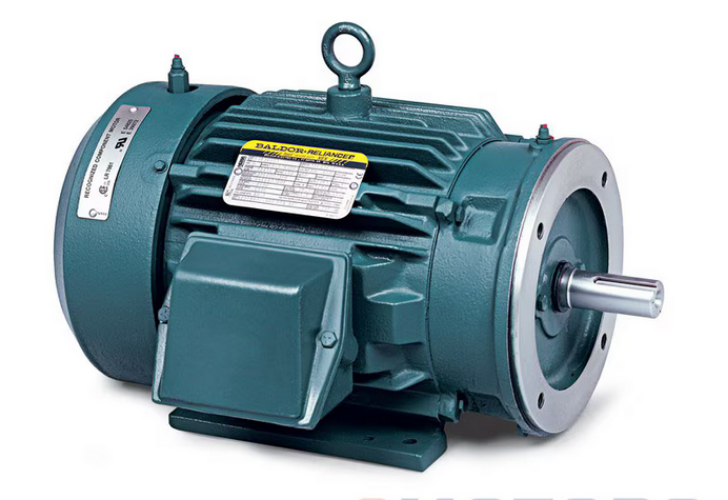

CECP2333T, 15Hp, 208-230/460V, 1765RPM, 3PH, 60HZ, 254TC, 0944M, TEFC, F1

CECP2333T, 15Hp, 208-230/460V, 1765RPM, 3PH, 60HZ, 254TC, 0944M, TEFC, F1

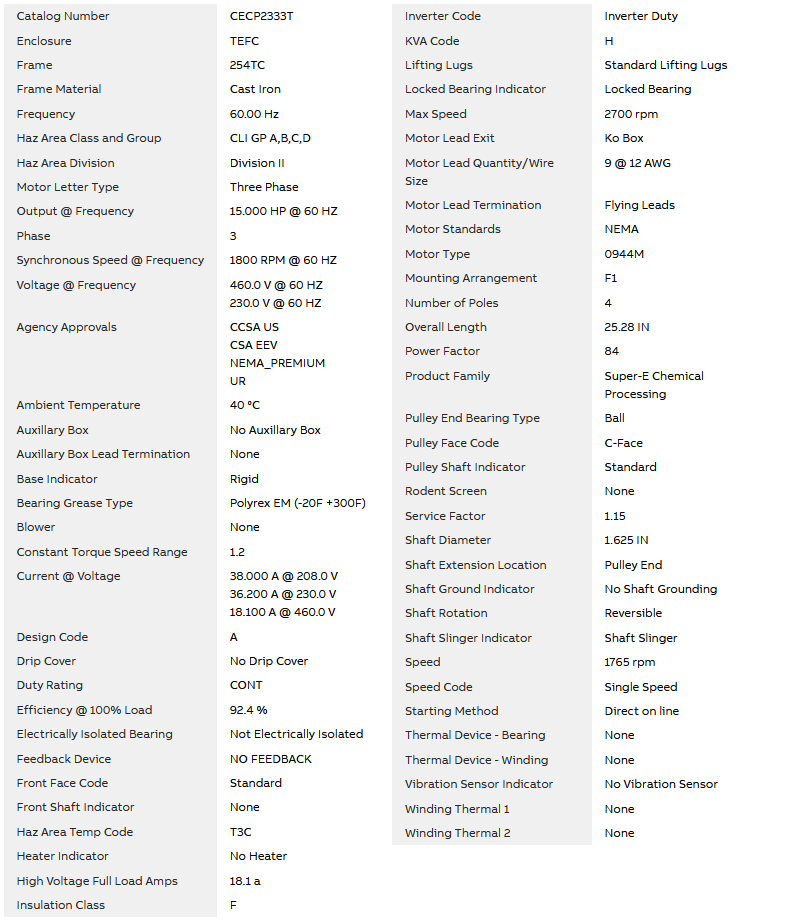

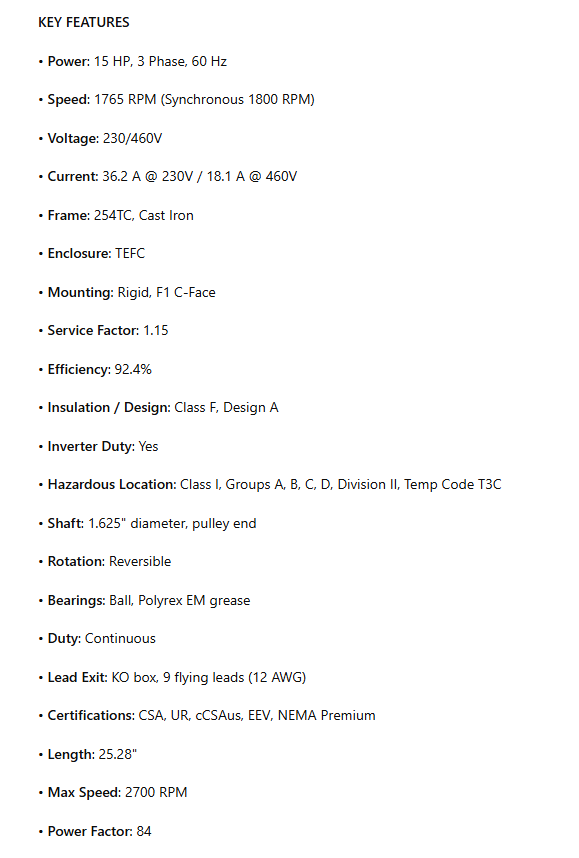

KEY FEATURES

• Power: 15 HP, 3 Phase, 60 Hz

• Speed: 1765 RPM (Synchronous 1800 RPM)

• Voltage: 230/460V

• Current: 36.2 A @ 230V / 18.1 A @ 460V

• Frame: 254TC, Cast Iron

• Enclosure: TEFC

• Mounting: Rigid, F1 C-Face

• Service Factor: 1.15

• Efficiency: 92.4%

• Insulation / Design: Class F, Design A

• Inverter Duty: Yes

• Hazardous Location: Class I, Groups A, B, C, D, Division II, Temp Code T3C

• Shaft: 1.625" diameter, pulley end

• Rotation: Reversible

• Bearings: Ball, Polyrex EM grease

• Duty: Continuous

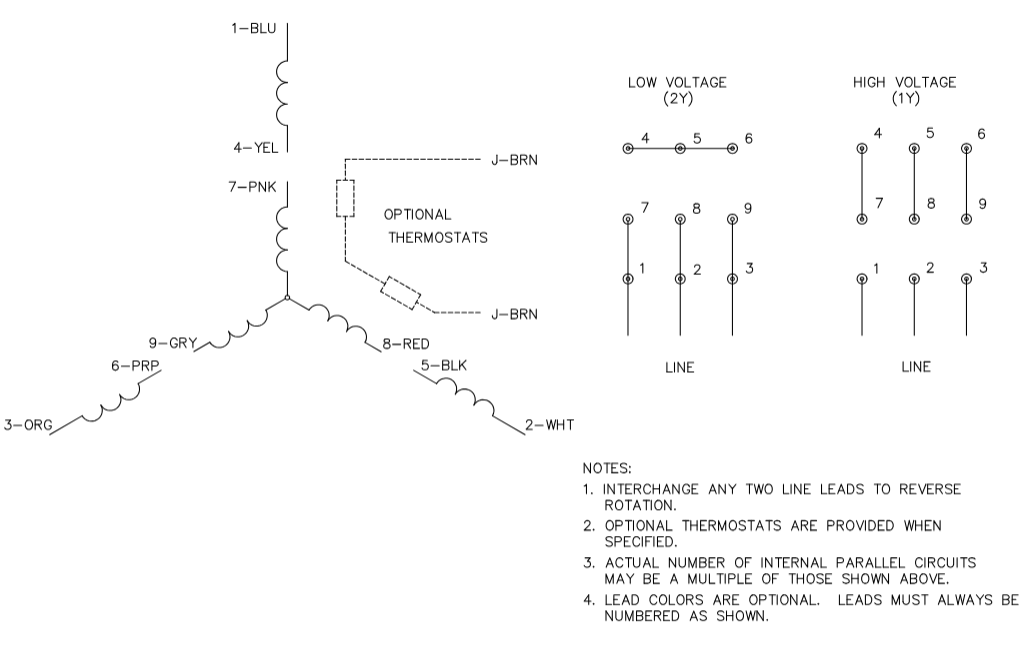

• Lead Exit: KO box, 9 flying leads (12 AWG)

• Certifications: CSA, UR, cCSAus, EEV, NEMA Premium

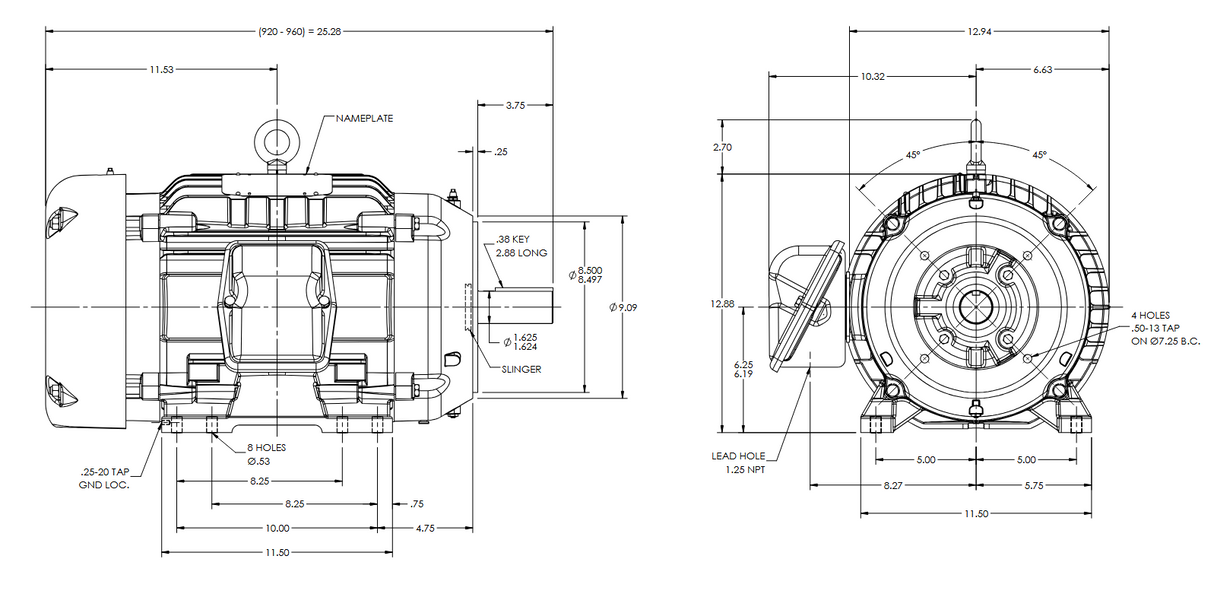

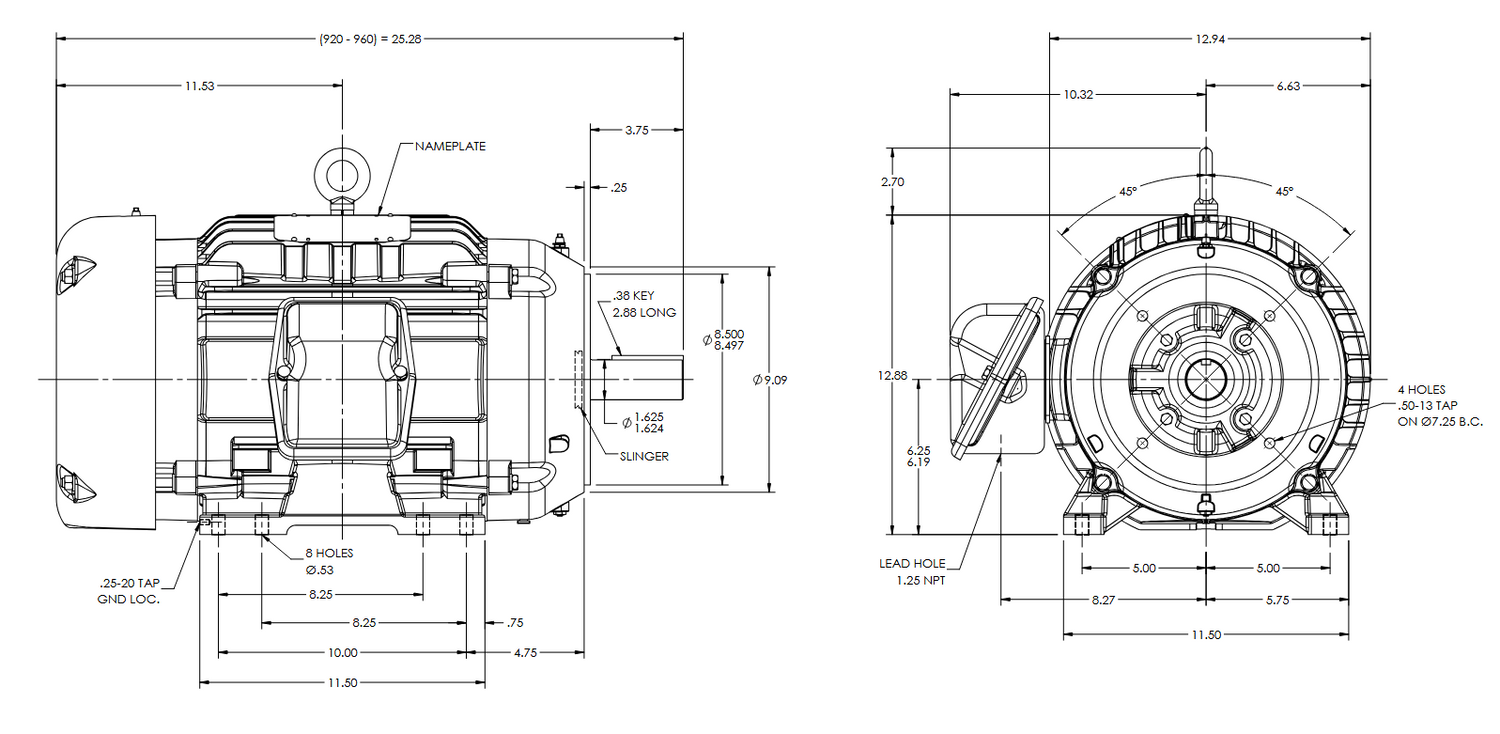

• Length: 25.28"

• Max Speed: 2700 RPM

• Power Factor: 84
