BALDOR | SKU:
EMN-018278

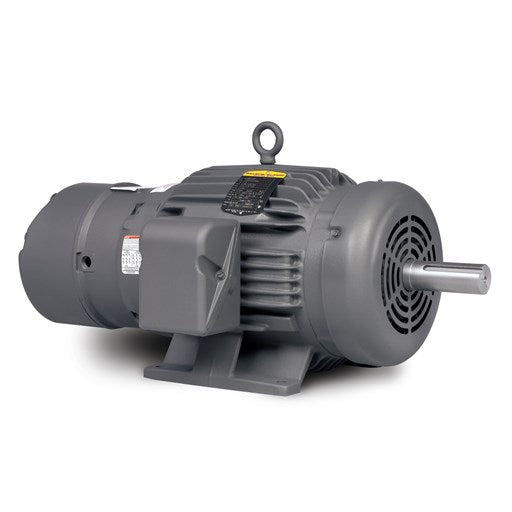

EBM2354T, Baldor, 20Hp, 1760 Rpm, 230/460 Volts, Frame:256T, TEFC,
Regular price
$8,670.13
Unit price
/
Unavailable
EBM2354T, Baldor, 20Hp, 1760 Rpm, 230/460 Volts, Frame:256T, TEFC, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
EBM2354T, Baldor, 20Hp, 1760 Rpm, 230/460 Volts, Frame:256T, TEFC,
Regular price
$8,670.13
Unit price
/
Unavailable
Description
Description
BM2354T, EBM2354T, 07K356X826H2 ,Baldor
| Category | Specification |
|---|
| Catalog Number | BM2354T |
| Enclosure | TEFC |
| Frame | 256T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Hazard Area Division | Not Applicable |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 20.000 HP @ 60 Hz |
| Phase | 3 |
| Synchronous Speed | 1800 RPM @ 60 Hz |
| Voltage @ Frequency | 460.0 V / 230.0 V @ 60 Hz |
| Agency Approvals | CSA, UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | RG |
| Bearing Grease Type | Polyrex EM (-20F to +300F) |
| Blower | None |
| Brake Torque | 75.0 lb-ft |
| Current @ Voltage | 25.000 A @ 460 V, 50.000 A @ 230 V, 54.000 A @ 208 V |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT (Continuous) |
| Efficiency @ 100% Load | 91.0% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | No Feedback |
| Front Face Code | Brake Mounting |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 25.0 A |
| Insulation Class | F |
| Inverter Code | Not Inverter Ready |
| KVA Code | J |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/Wire Size | 9 @ 10 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Standards | NEMA |
| Motor Type | 0760M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 31.13 in |
| Power Factor | 83 |
| Product Family | General Purpose |
| Product Type | Brake Motor |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.625 in |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1760 rpm |
| Speed Code | Single Speed |
| Starting Method | Direct on Line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
