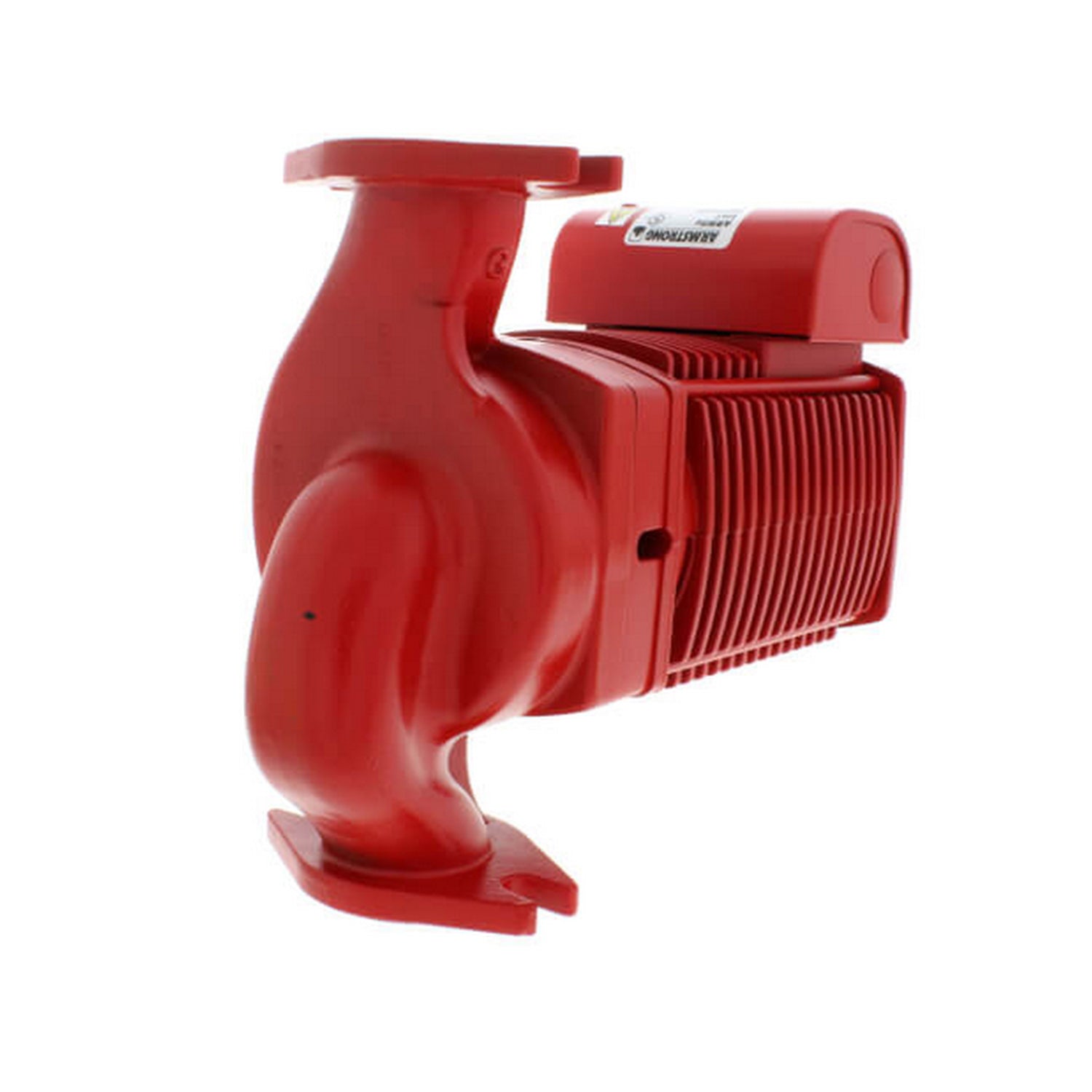

182212‑653, 0.4Hp, 3400 RPM, 120 V, 1 Ph, 60 Hz, ODP, Cast Iron

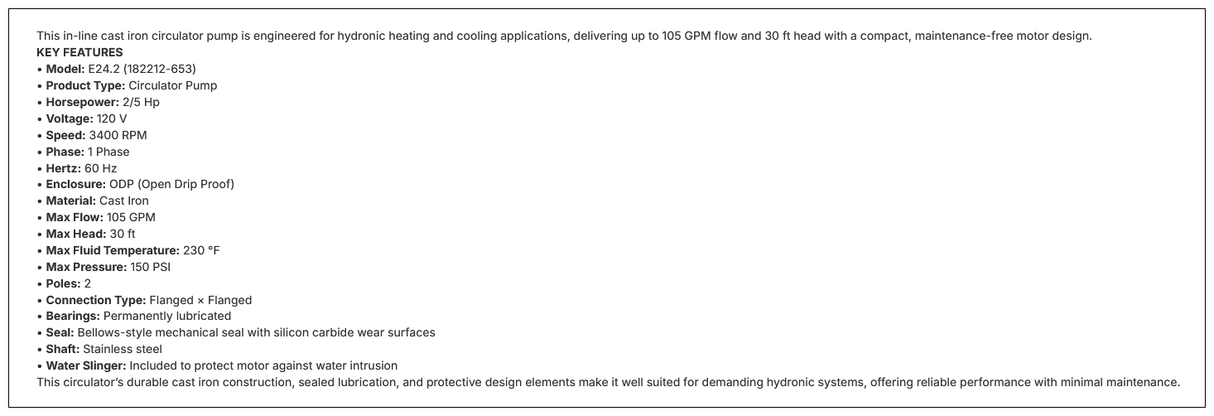

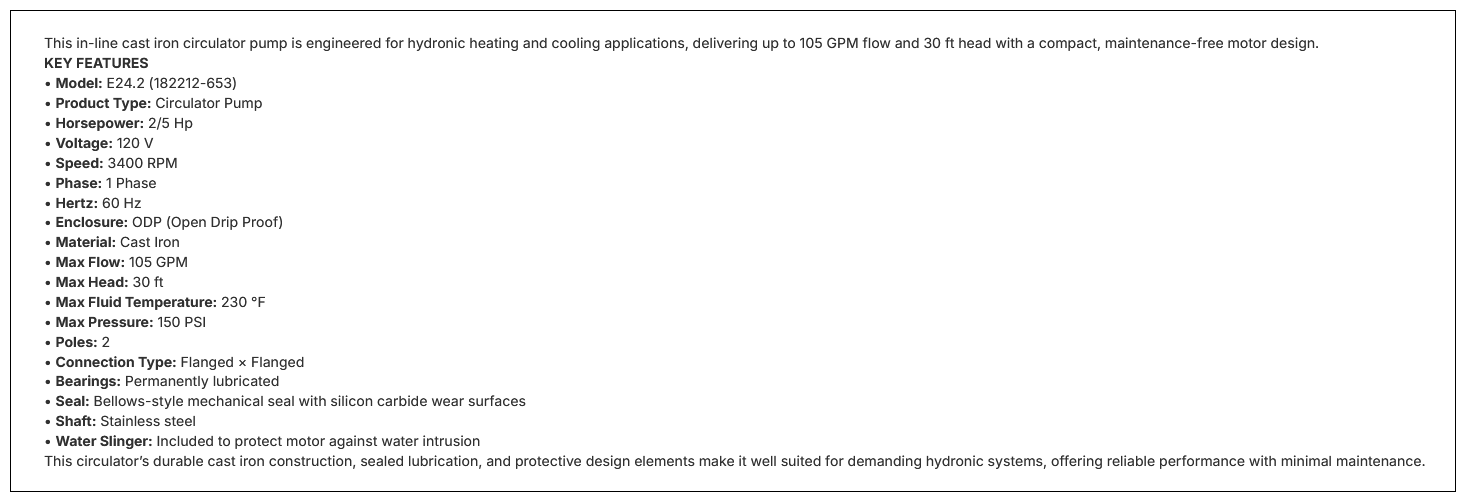

This in‑line cast iron circulator pump is engineered for hydronic heating and cooling applications, delivering up to 105 GPM flow and 30 ft head with a compact, maintenance‑free motor design.

KEY FEATURES

• Model: E24.2 (182212‑653)

• Product Type: Circulator Pump

• Horsepower: 2/5 Hp

• Voltage: 120 V

• Speed: 3400 RPM

• Phase: 1 Phase

• Hertz: 60 Hz

• Enclosure: ODP (Open Drip Proof)

• Material: Cast Iron

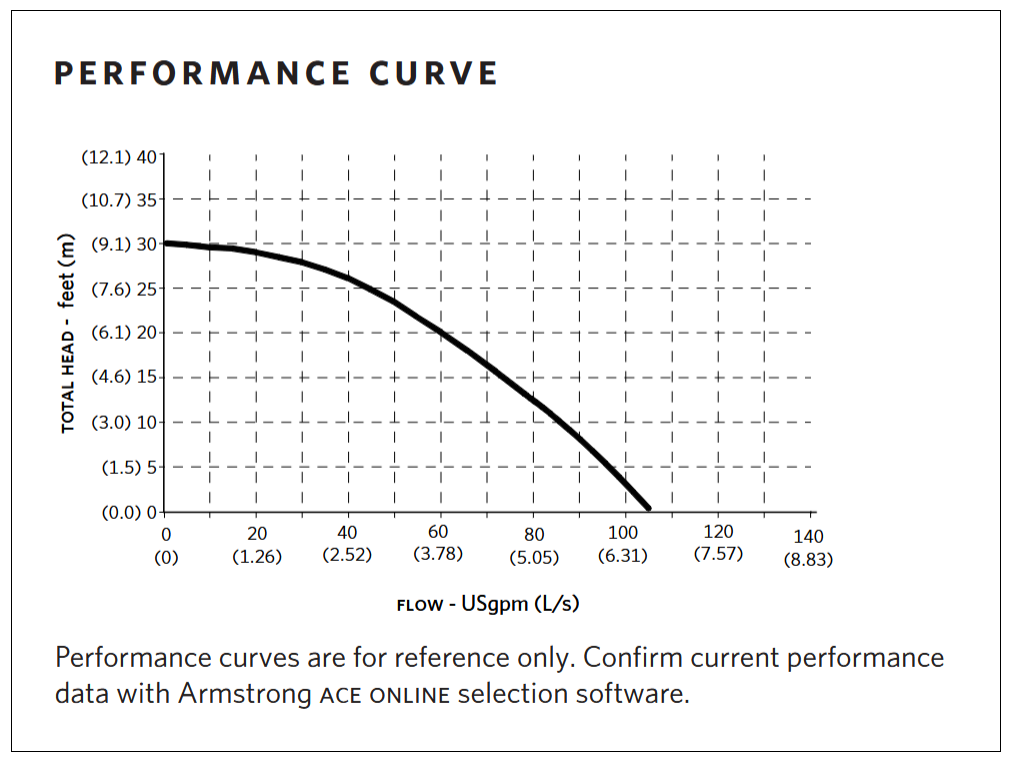

• Max Flow: 105 GPM

• Max Head: 30 ft

• Max Fluid Temperature: 230 °F

• Max Pressure: 150 PSI

• Poles: 2

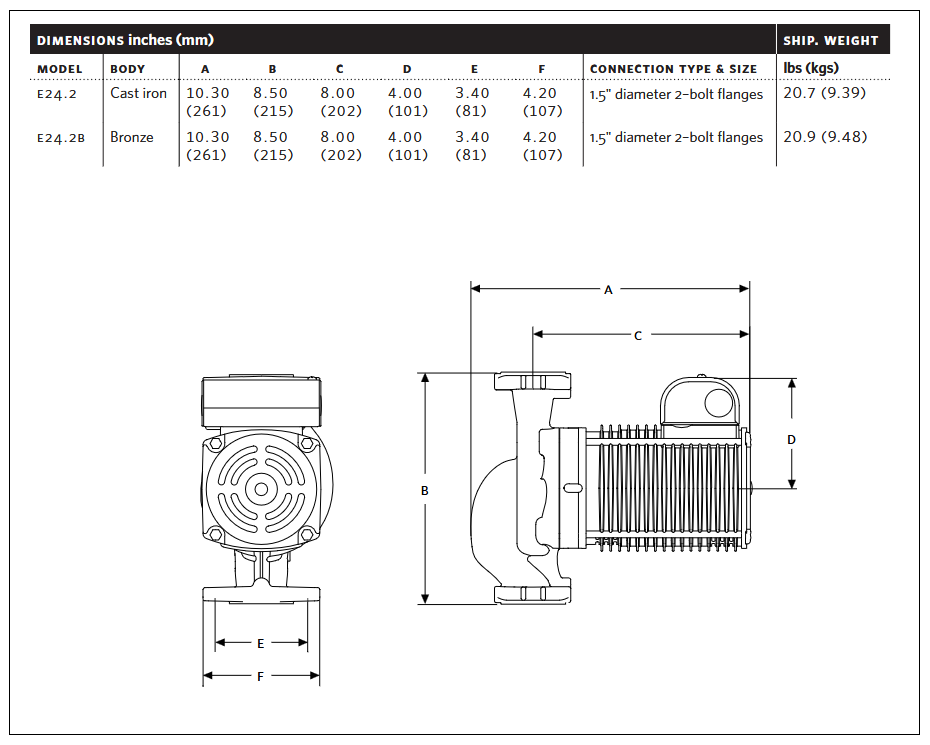

• Connection Type: Flanged × Flanged

• Bearings: Permanently lubricated

• Seal: Bellows‑style mechanical seal with silicon carbide wear surfaces

• Shaft: Stainless steel

• Water Slinger: Included to protect motor against water intrusion

This circulator’s durable cast iron construction, sealed lubrication, and protective design elements make it well suited for demanding hydronic systems, offering reliable performance with minimal maintenance.
