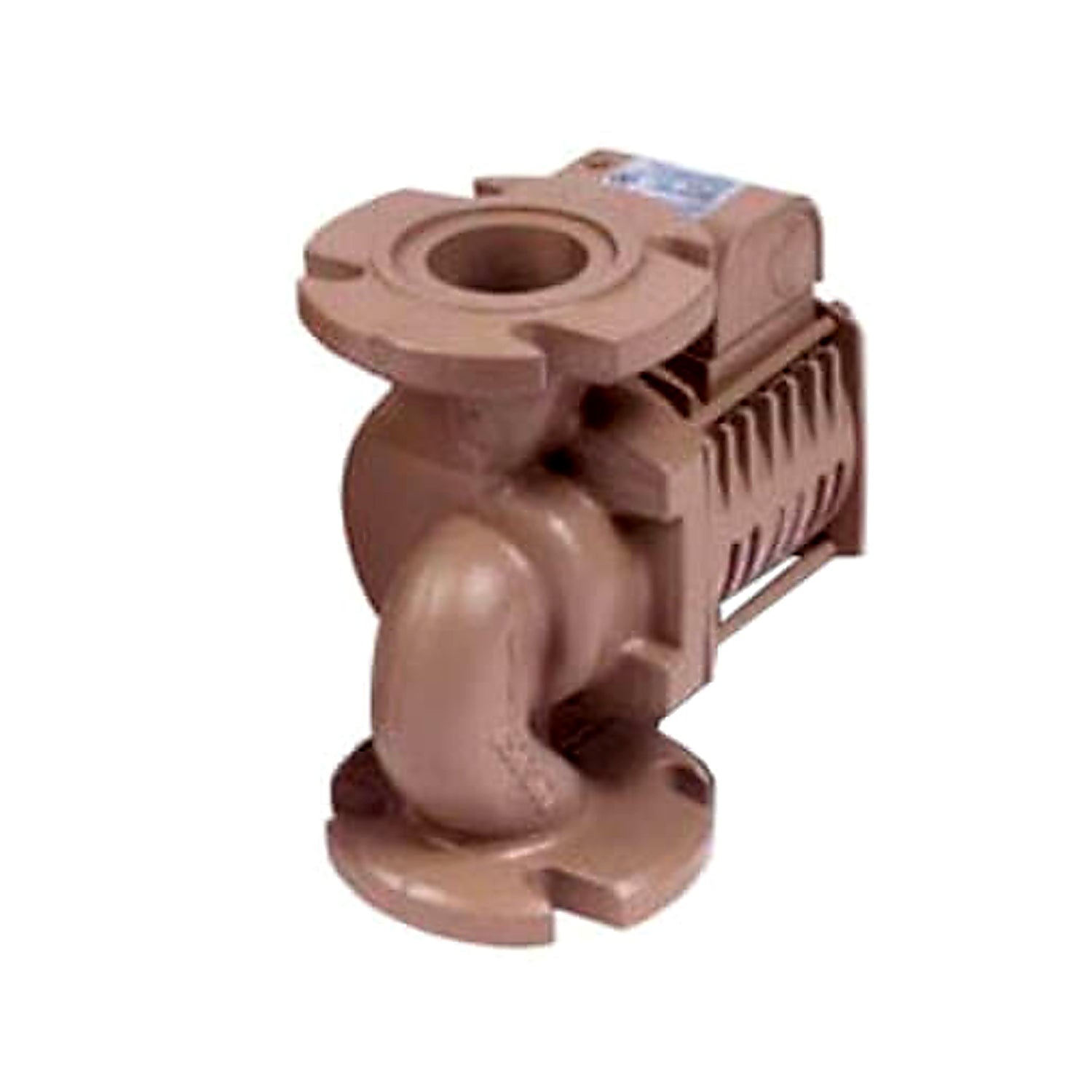

182212‑652, 2/5 Hp, 3400 RPM, 120 V, 1 Ph, 60 Hz, ODP, Bronze Circulator Pump

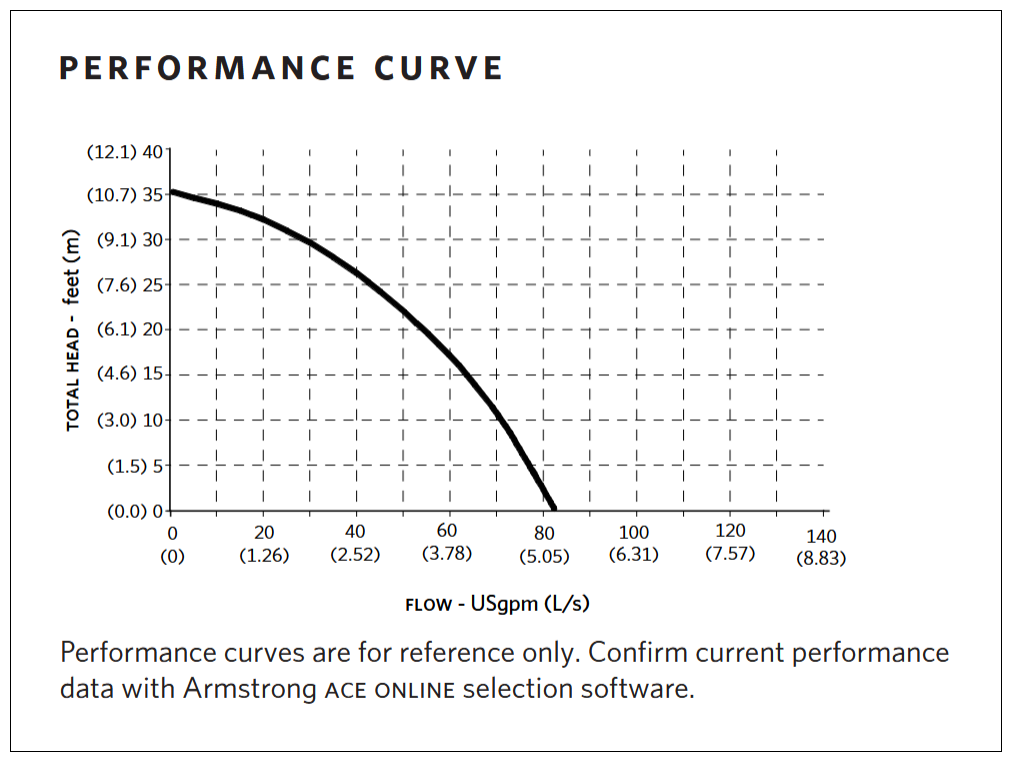

This inline bronze circulator pump is engineered for hydronic heating and cooling systems, offering compact dry‑motor design and efficient performance across a 0–83 GPM flow range and up to 35.5 ft head.

KEY FEATURES

• Model: E23.2B (182212‑652)

• Product Type: Bronze circulator pump

• Horsepower: 2/5 Hp

• Voltage: 120 V @ 60 Hz

• Speed: 3400 RPM

• Phase: 1 Phase

• Poles: 2

• Max Flow: 83 GPM

• Max Head: 35.5 ft

• Max Fluid Temperature: 230 °F

• Max Pressure: 150 PSI

• Material: Bronze

• Connection Type: Flanged × Flanged

• Enclosure: ODP (Open Drip Proof)

• Weight: 20.9 lbs
