LENZE  |  SKU: EMN-018360

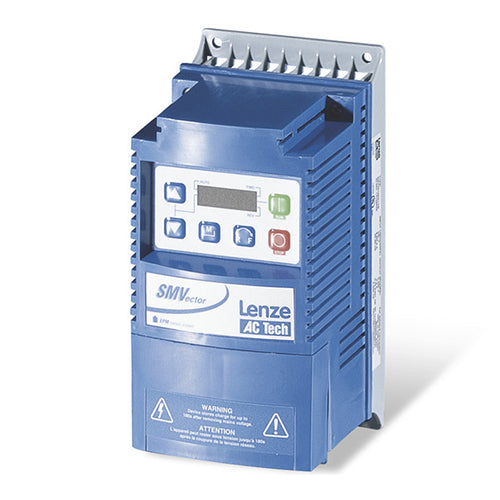

ESV371N01SXB, SMV SERIES SENSORLESS Vector 0.5Hp / 120/240V, 1PH(i/p) / 230V, 3PH(o/p) / 2.4A(o/p) Cont. / NEMA1

$421.90
shipping

Estimate shipping

Description

ESV371N01SXB,SMV SERIES SENSORLESS Vector 0.5Hp / 120/240V, 1PH(i/p) / 230V, 3PH(o/p) / 2.4A(o/p) Cont. / NEMA1

Equivalent : Leeson 174607.00

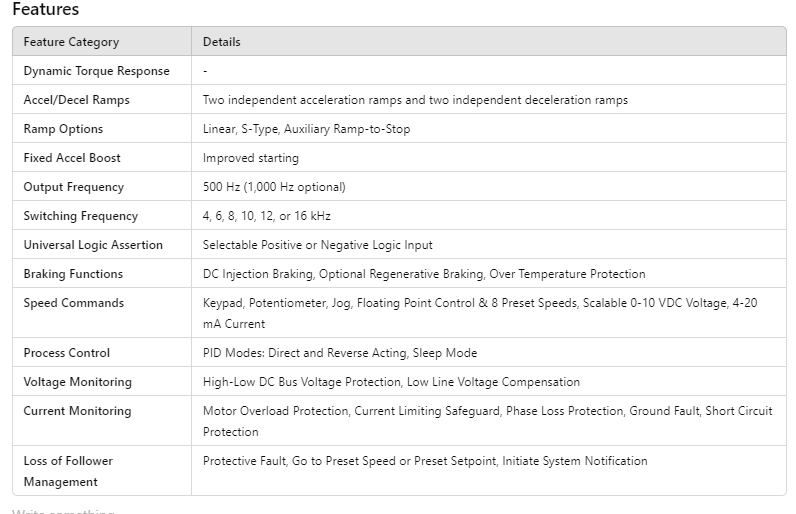

Features

Feature Category Details
Dynamic Torque Response -
Accel/Decel Ramps Two independent acceleration ramps and two independent deceleration ramps
Ramp Options Linear, S-Type, Auxiliary Ramp-to-Stop
Fixed Accel Boost Improved starting
Output Frequency 500 Hz (1,000 Hz optional)
Switching Frequency 4, 6, 8, 10, 12, or 16 kHz
Universal Logic Assertion Selectable Positive or Negative Logic Input
Braking Functions DC Injection Braking, Optional Regenerative Braking, Over Temperature Protection
Speed Commands Keypad, Potentiometer, Jog, Floating Point Control & 8 Preset Speeds, Scalable 0-10 VDC Voltage, 4-20 mA Current
Process Control PID Modes: Direct and Reverse Acting, Sleep Mode
Voltage Monitoring High-Low DC Bus Voltage Protection, Low Line Voltage Compensation
Current Monitoring Motor Overload Protection, Current Limiting Safeguard, Phase Loss Protection, Ground Fault, Short Circuit Protection
Loss of Follower Management Protective Fault, Go to Preset Speed or Preset Setpoint, Initiate System Notification
