LENZE | SKU:
EMN-018369

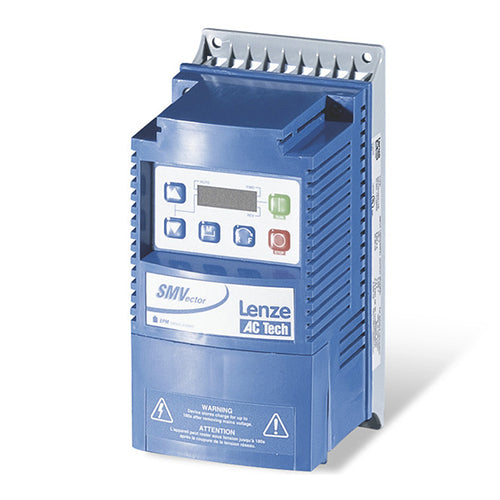

ESV152N02YXB, SMV SERIES SENSORLESS Vector 2HP / 240V, 1/3PH(i/p) / 230V, 3PH(o/p) / 7.0A(o/p) Cont. / NEMA1
Regular price
$558.18
Unit price
/
Unavailable
ESV152N02YXB, SMV SERIES SENSORLESS Vector 2HP / 240V, 1/3PH(i/p) / 230V, 3PH(o/p) / 7.0A(o/p) Cont. / NEMA1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![ESV152N02YXB, SMV SERIES SENSORLESS Vector 2HP / 240V, 1/3PH(i/p) / 230V, 3PH(o/p) / 7.0A(o/p) Cont. / NEMA1 - AC DRIVES - E-Motor Nations - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur - fan](http://www.emotornations.com/cdn/shop/files/ESV152N02YXB.jpg?v=1756412492&width=112)
ESV152N02YXB, SMV SERIES SENSORLESS Vector 2HP / 240V, 1/3PH(i/p) /...
Regular price
$558.18
Unit price
/
Unavailable
Description
Description
ESV152N02YXB, SMV SERIES SENSORLESS VECTOR 2HP / 240V, 1/3PH(i/p) / 230V, 3PH(o/p) / 7.0A(o/p) Cont. / NEMA1
Equivalent : Leeson 174610-00

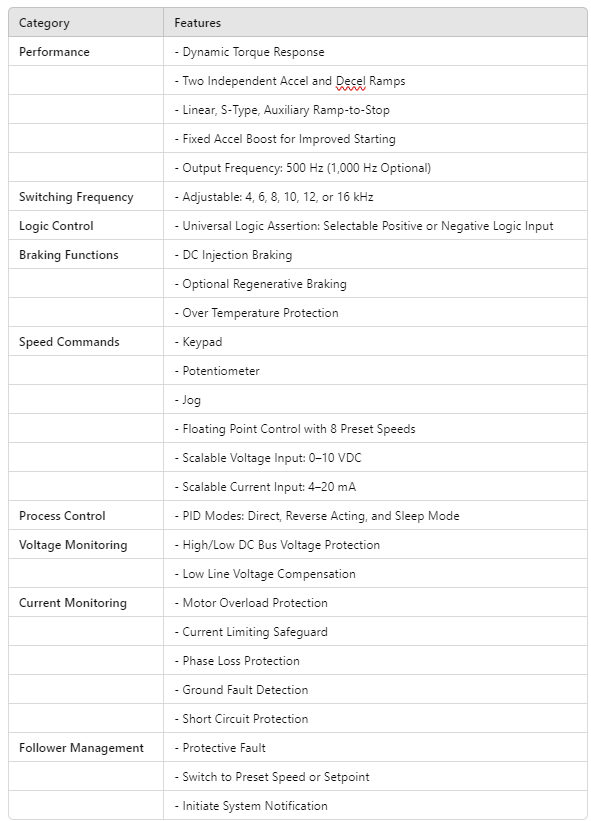

| Category | Features |
|---|---|
| Performance | - Dynamic Torque Response |
| - Two Independent Accel and Decel Ramps | |
| - Linear, S-Type, Auxiliary Ramp-to-Stop | |
| - Fixed Accel Boost for Improved Starting | |
| - Output Frequency: 500 Hz (1,000 Hz Optional) | |
| Switching Frequency | - Adjustable: 4, 6, 8, 10, 12, or 16 kHz |
| Logic Control | - Universal Logic Assertion: Selectable Positive or Negative Logic Input |
| Braking Functions | - DC Injection Braking |
| - Optional Regenerative Braking | |
| - Over Temperature Protection | |
| Speed Commands | - Keypad |
| - Potentiometer | |
| - Jog | |
| - Floating Point Control with 8 Preset Speeds | |
| - Scalable Voltage Input: 0–10 VDC | |
| - Scalable Current Input: 4–20 mA | |
| Process Control | - PID Modes: Direct, Reverse Acting, and Sleep Mode |
| Voltage Monitoring | - High/Low DC Bus Voltage Protection |
| - Low Line Voltage Compensation | |
| Current Monitoring | - Motor Overload Protection |
| - Current Limiting Safeguard | |
| - Phase Loss Protection | |
| - Ground Fault Detection | |
| - Short Circuit Protection | |
| Follower Management | - Protective Fault |
| - Switch to Preset Speed or Setpoint | |
| - Initiate System Notification |
