E-Motor Nations  |  SKU: EMN-019342

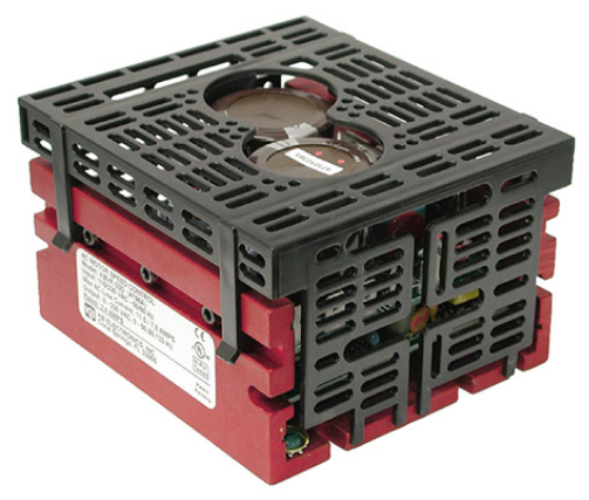

9957, (KBVF-13) Hybrid AC Drive 1/2Hp 2.4A 115V 1PH Input 230V 3PH output IP20 Chassis

$359.86
shipping

Estimate shipping

Description

9957, (KBVF-13) Hybrid AC Drive 1/2Hp 2.4A 115V 1PH Input 230V 3PH output IP20 Chassis

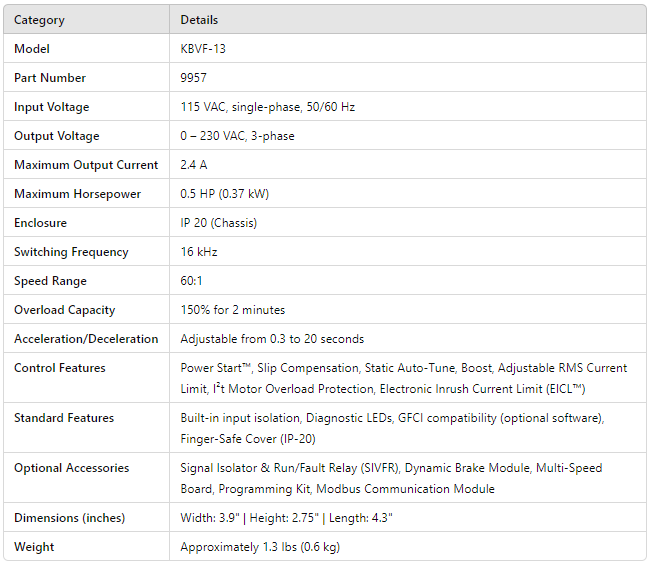

Category Details
Model KBVF-13
Part Number 9957
Input Voltage 115 VAC, single-phase, 50/60 Hz
Output Voltage 0 – 230 VAC, 3-phase
Maximum Output Current 2.4 A
Maximum Horsepower 0.5 HP (0.37 kW)
Enclosure IP 20 (Chassis)
Switching Frequency 16 kHz
Speed Range 60:1
Overload Capacity 150% for 2 minutes
Acceleration/Deceleration Adjustable from 0.3 to 20 seconds
Control Features
Power Start™, Slip Compensation, Static Auto-Tune, Boost, Adjustable RMS Current Limit, I²t Motor Overload Protection, Electronic Inrush Current Limit (EICL™)
Standard Features
Built-in input isolation, Diagnostic LEDs, GFCI compatibility (optional software), Finger-Safe Cover (IP-20)
Optional Accessories
Signal Isolator & Run/Fault Relay (SIVFR), Dynamic Brake Module, Multi-Speed Board, Programming Kit, Modbus Communication Module
Dimensions (inches) Width: 3.9" | Height: 2.75" | Length: 4.3"
Weight Approximately 1.3 lbs (0.6 kg)
