E-Motor Nations  |  SKU: EMN-019375

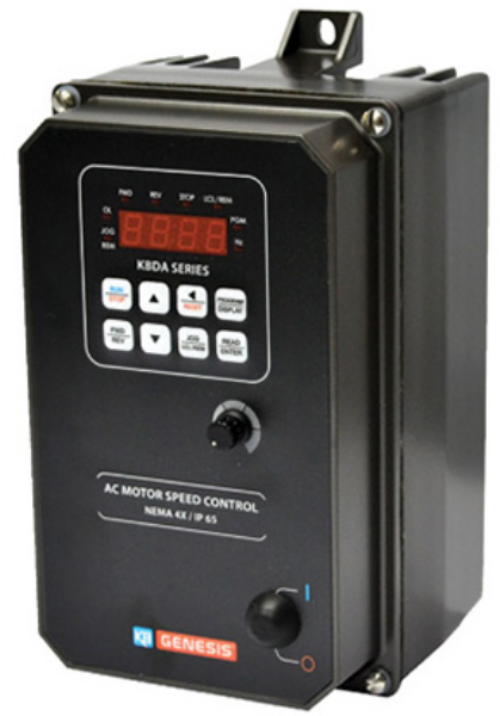

9536, (KBDA-24D) Digital AC Drive 1Hp 3.6A 115/208-230V 1PH Input 208-230V 3PH Output NEMA 4X Enclosure - Gray

$745.83
shipping

Estimate shipping

Description

9536, (KBDA-24D) Digital AC Drive 1Hp 3.6A 115/208-230V 1PH Input 208-230V 3PH Output NEMA 4X Enclosure - Gray

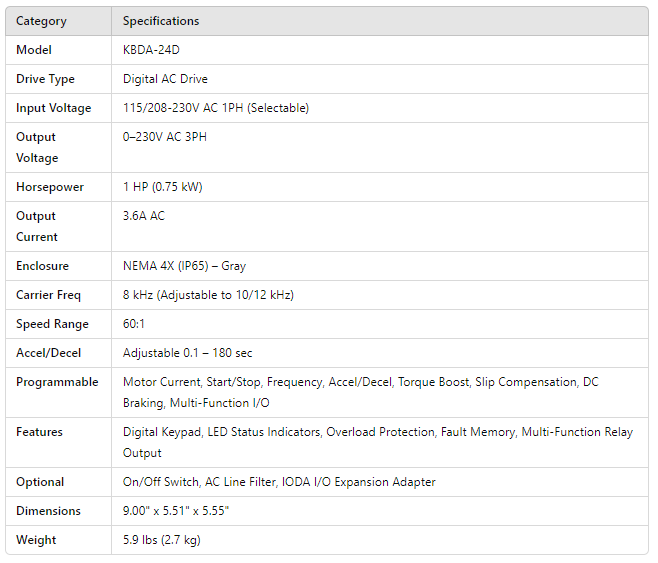

Category Specifications
Model KBDA-24D
Drive Type Digital AC Drive
Input Voltage 115/208-230V AC 1PH (Selectable)
Output Voltage 0–230V AC 3PH
Horsepower 1 HP (0.75 kW)
Output Current 3.6A AC
Enclosure NEMA 4X (IP65) – Gray
Carrier Freq 8 kHz (Adjustable to 10/12 kHz)
Speed Range 60:1
Accel/Decel Adjustable 0.1 – 180 sec
Programmable Motor Current, Start/Stop, Frequency, Accel/Decel, Torque Boost, Slip Compensation, DC Braking, Multi-Function I/O
Features Digital Keypad, LED Status Indicators, Overload Protection, Fault Memory, Multi-Function Relay Output
Optional On/Off Switch, AC Line Filter, IODA I/O Expansion Adapter
Dimensions 9.00" x 5.51" x 5.55"
Weight 5.9 lbs (2.7 kg)
