E-Motor Nations  |  SKU: EMN-019370

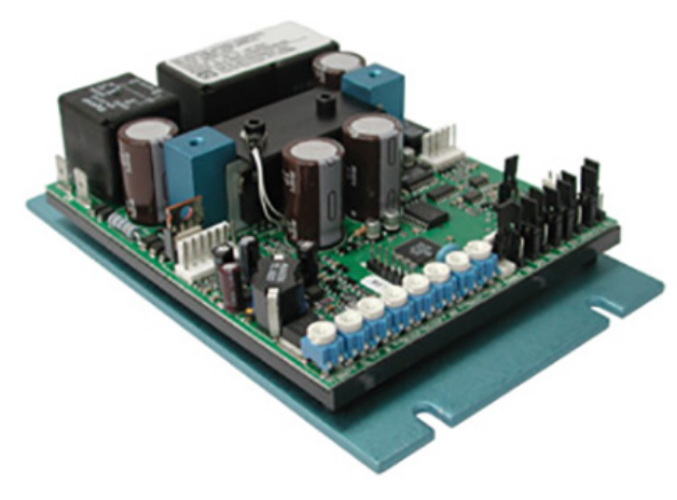

9500, (KBBC-24M) Battery DC Drive 1/2Hp-1Hp 40A 12/24VDC Input 12/24VDC Output Chassis

Regular price $795.00



shipping

Estimate shipping

Description

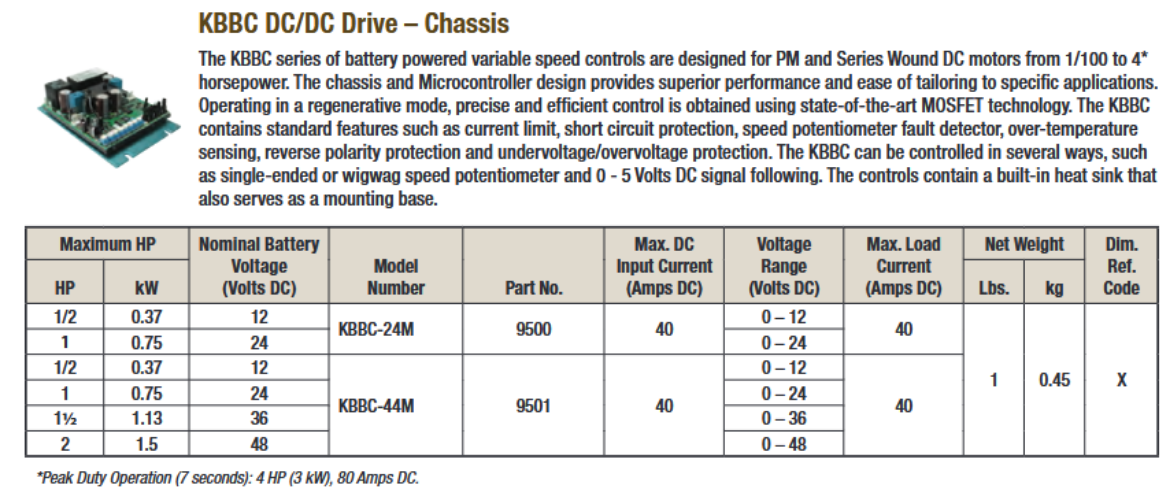

9500, (KBBC-24M) Battery DC Drive 1/2Hp-1Hp 40A 12/24VDC Input 12/24VDC Output Chassis, Replaced BY 9501 KB, KBBC-44M,

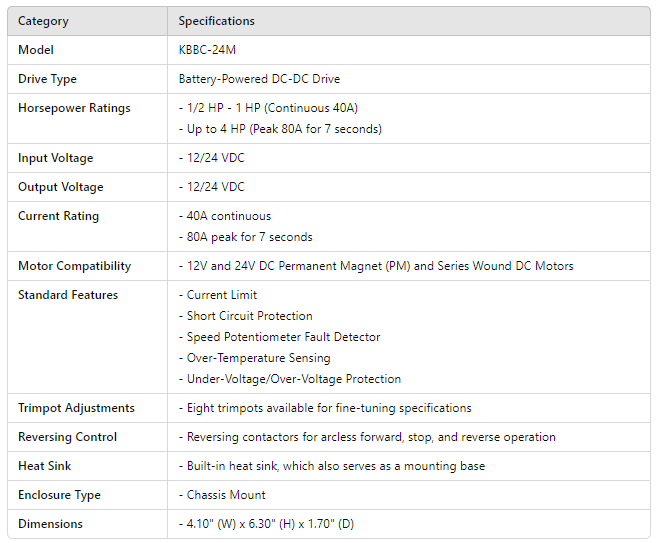

Category Specifications
Model KBBC-24M Obsolete replaced by KBBC-44M
Drive Type Battery-Powered DC-DC Drive
Horsepower Ratings - 1/2 HP - 1 HP (Continuous 40A)
- Up to 4 HP (Peak 80A for 7 seconds)
Input Voltage - 12/24 VDC
Output Voltage - 12/24 VDC
Current Rating - 40A continuous
- 80A peak for 7 seconds
Motor Compatibility - 12V and 24V DC Permanent Magnet (PM) and Series Wound DC Motors
Standard Features - Current Limit
- Short Circuit Protection
- Speed Potentiometer Fault Detector
- Over-Temperature Sensing
- Under-Voltage/Over-Voltage Protection
Trimpot Adjustments - Eight trimpots available for fine-tuning specifications
Reversing Control - Reversing contactors for arcless forward, stop, and reverse operation
Heat Sink - Built-in heat sink, which also serves as a mounting base
Enclosure Type - Chassis Mount

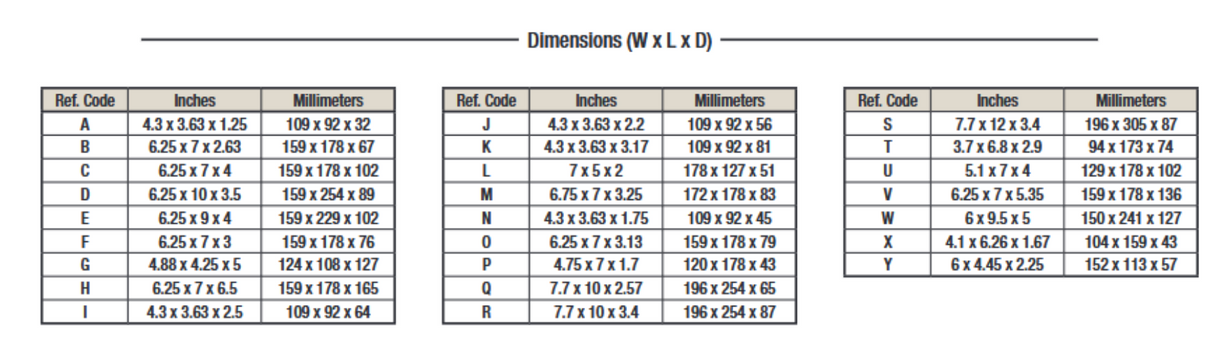

Dimensions - 4.10" (W) x 6.30" (H) x 1.70" (D)
