8900, (KBPB-125) Obsolete replaced by 8800 KB, SCR DC Drive 3/4Hp 8A 120VAC Input 90VDC Ouput IP20 Chassis Relay Reversing

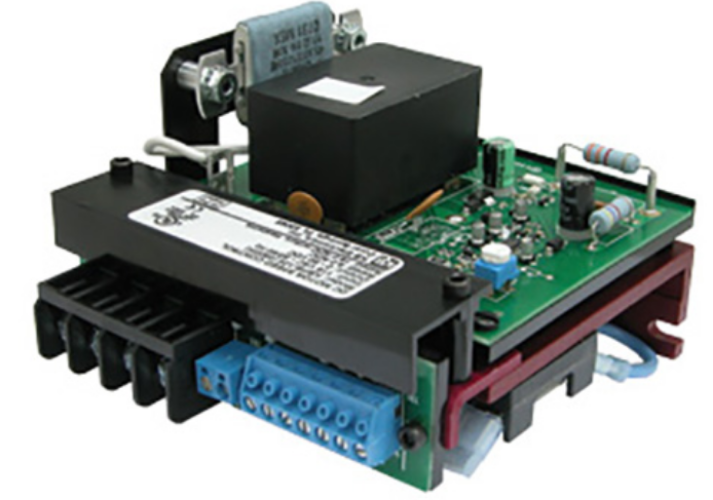

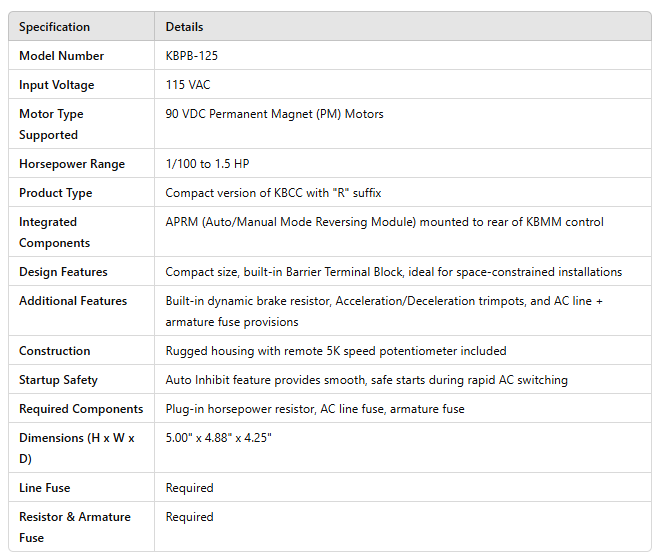

Specification	Details
Model Number	KBPB-125
Input Voltage	115 VAC
Motor Type Supported	90 VDC Permanent Magnet (PM) Motors
Horsepower Range	1/100 to 1.5 HP
Product Type	Compact version of KBCC with "R" suffix
Integrated Components	APRM (Auto/Manual Mode Reversing Module) mounted to rear of KBMM control
Design Features	Compact size, built-in Barrier Terminal Block, ideal for space-constrained installations
Additional Features	Built-in dynamic brake resistor, Acceleration/Deceleration trimpots, and AC line + armature fuse provisions
Construction	Rugged housing with remote 5K speed potentiometer included
Startup Safety	Auto Inhibit feature provides smooth, safe starts during rapid AC switching
Required Components	Plug-in horsepower resistor, AC line fuse, armature fuse

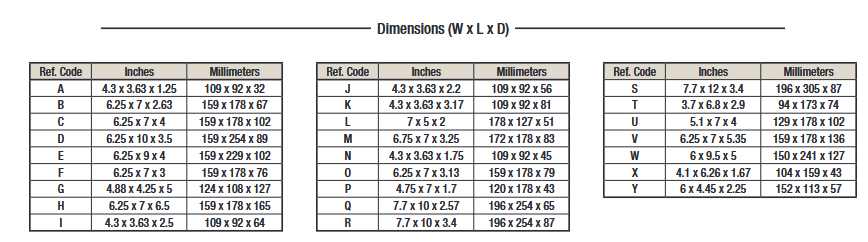

Dimensions (H x W x D)	5.00" x 4.88" x 4.25"
Line Fuse	Required
Resistor & Armature Fuse	Required

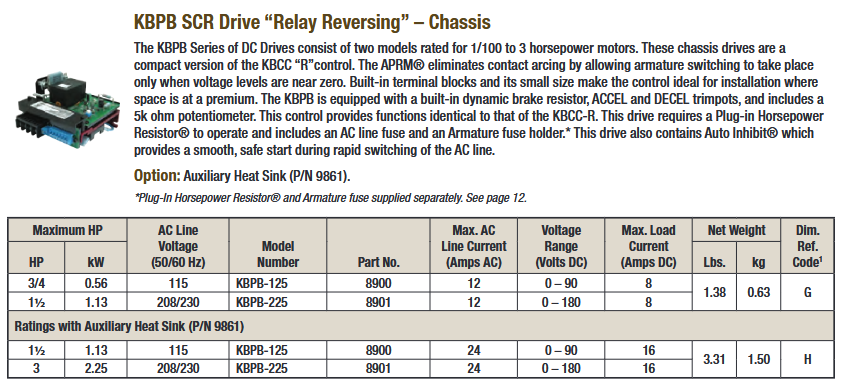

The KBPB Series of DC Drives consist of two models rated for 1/100 to 3 horsepower motors. These chassis drives are a
compact version of the KBCC “R”control. The APRM® eliminates contact arcing by allowing armature switching to take place
only when voltage levels are near zero. Built-in terminal blocks and its small size make the control ideal for installation where
space is at a premium. The KBPB is equipped with a built-in dynamic brake resistor, ACCEL and DECEL trimpots, and includes a
5k ohm potentiometer. This control provides functions identical to that of the KBCC-R. This drive requires a Plug-in Horsepower
Resistor® to operate and includes an AC line fuse and an Armature fuse holder.* This drive also contains Auto Inhibit® which
provides a smooth, safe start during rapid switching of the AC line
