E-Motor Nations  |  SKU: EMN-019334

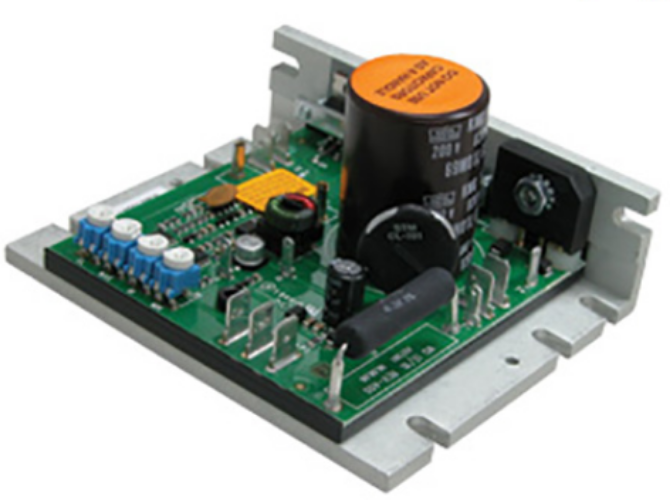

8609, (KBWD-13) PWM DC Drive 1/3Hp 3A 115VAC 1PH Input 130VDC Output Chassis

$221.38
shipping

Estimate shipping

Description

8609, (KBWD-13) PWM DC Drive 1/3Hp 3A 115VAC 1PH Input 130VDC Output Chassis

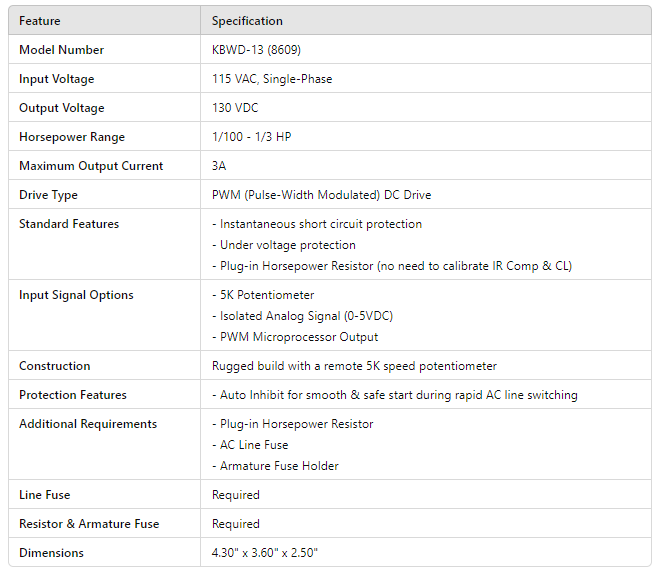

Feature Specification
Model Number KBWD-13 (8609)
Input Voltage 115 VAC, Single-Phase
Output Voltage 130 VDC
Horsepower Range 1/100 - 1/3 HP
Maximum Output Current 3A
Drive Type PWM (Pulse-Width Modulated) DC Drive
Standard Features - Instantaneous short circuit protection
- Under voltage protection
- Plug-in Horsepower Resistor (no need to calibrate IR Comp & CL)
Input Signal Options - 5K Potentiometer
- Isolated Analog Signal (0-5VDC)
- PWM Microprocessor Output
Construction Rugged build with a remote 5K speed potentiometer
Protection Features - Auto Inhibit for smooth & safe start during rapid AC line switching
Additional Requirements - Plug-in Horsepower Resistor
- AC Line Fuse
- Armature Fuse Holder
Line Fuse Required
Resistor & Armature Fuse Required
Dimensions 4.30" x 3.60" x 2.50"
