130HC100, SERIE 130 1/8-1Hp 10A 120V Chassis

130HC100, SERIE 130 1/8-1Hp 10A 120V Chassis

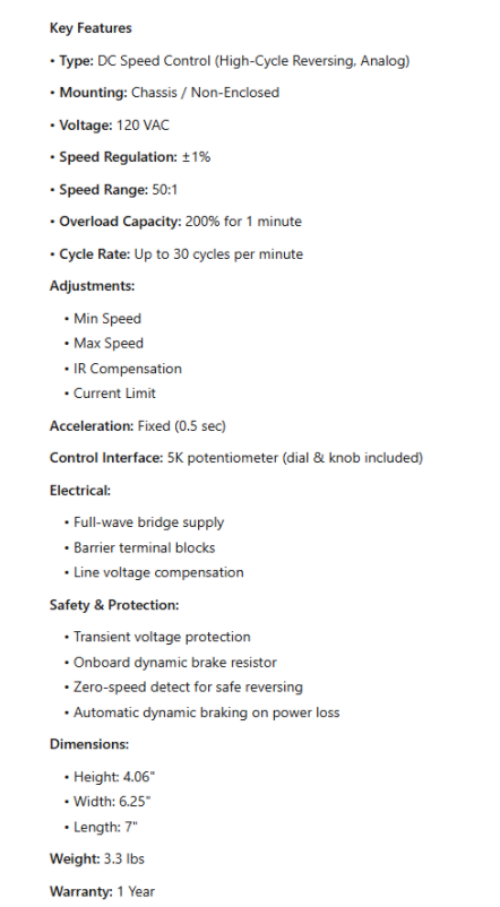

Key Features

• Type: DC Speed Control (High-Cycle Reversing, Analog)

• Mounting: Chassis / Non-Enclosed

• Voltage: 120 VAC

• Speed Regulation: ±1%

• Speed Range: 50:1

• Overload Capacity: 200% for 1 minute

• Cycle Rate: Up to 30 cycles per minute

Adjustments:

 • Min Speed
 • Max Speed
 • IR Compensation
 • Current Limit

Acceleration: Fixed (0.5 sec)

Control Interface: 5K potentiometer (dial & knob included)

Electrical:

 • Full-wave bridge supply
 • Barrier terminal blocks
 • Line voltage compensation

Safety & Protection:

 • Transient voltage protection
 • Onboard dynamic brake resistor
 • Zero-speed detect for safe reversing
 • Automatic dynamic braking on power loss

Dimensions:

 • Height: 4.06"
 • Width: 6.25"
 • Length: 7"

Weight: 3.3 lbs

Warranty: 1 Year

The 130 Series from Dart is an economical, safe and effective drive for applications which require rapid stopping (brake) or reversal of the motor being controlled. The
130 Series uses relays and sophisticated circuitry to reverse the motor safely - avoiding damage to both the motor and the drive. The motor should be stopped in its original direction before armature voltage polarity is reversed, to safely achieve direction
reversal. The 130 Series accomplishes this automatically. The sequence is to disconnect the motor from the drive and replace it with a dynamic brake resistor - this dissipates all energy in the motor causing the motor to stop fast (brake). Once the 130
circuit sees this has occurred, the relays change state and allow the motor to start in the opposite direction. This happens in a fraction of a second. As many as 30 motor reversals a minute can be executed even with the motor under full load. In many applications the 130 Series will replace expensive regenerative drives that do not require holding torque for
the application.
