A.O SMITH | SKU:
EMN-018195

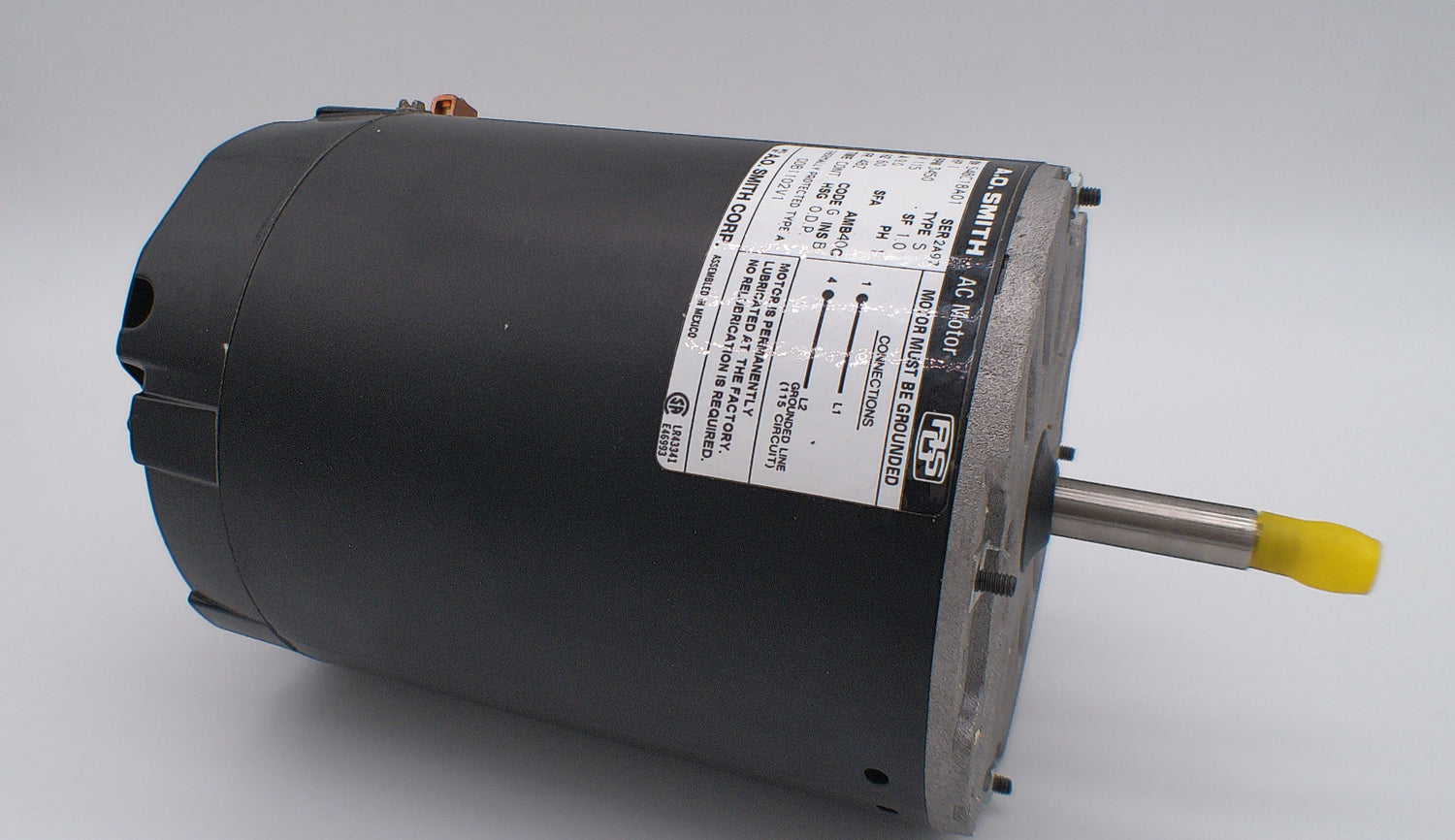

ODB1102V1, AO Smith, 1 Hp, 3600 Rpm, 120 Volts, Frame: 48Z, ODP,
Regular price
$184.45
Unit price
/
Unavailable
ODB1102V1, AO Smith, 1 Hp, 3600 Rpm, 120 Volts, Frame: 48Z, ODP, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
ODB1102V1, AO Smith, 1 Hp, 3600 Rpm, 120 Volts, Frame: 48Z, ODP,
Regular price
$184.45
Unit price
/
Unavailable
Description
Description
ODB1102V1, AO Smith

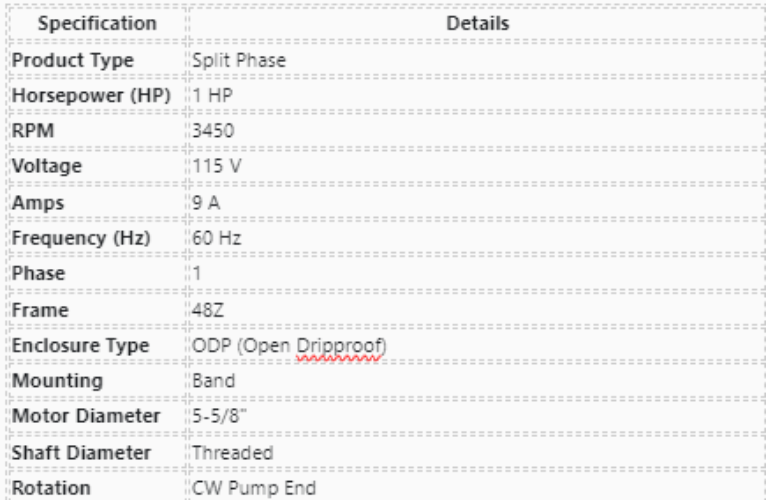

| Specification | Details |
|---|---|
| Product Type | Split Phase |
| Horsepower (HP) | 1 HP |
| RPM | 3450 |
| Voltage | 115 V |
| Amps | 9 A |
| Frequency (Hz) | 60 Hz |
| Phase | 1 |
| Frame | 48Z |
| Enclosure Type | ODP (Open Dripproof) |
| Mounting | Band |
| Motor Diameter | 5-5/8" |
| Shaft Diameter | Threaded |
| Rotation | CW Pump End |

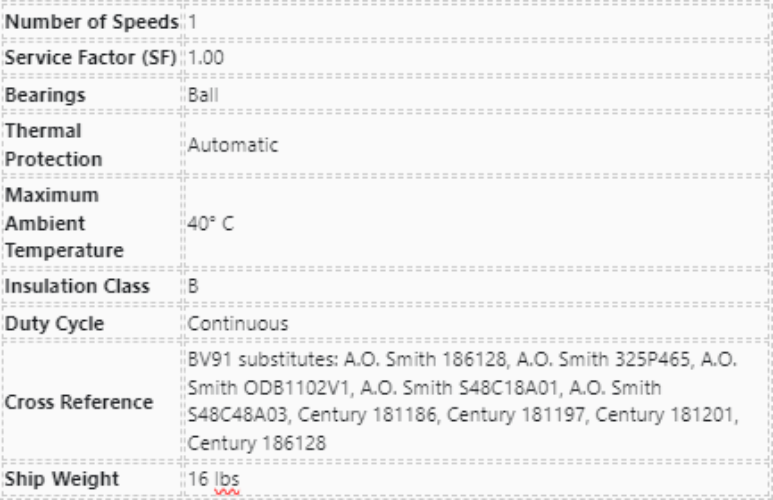

| Number of Speeds | 1 |
| Service Factor (SF) | 1.00 |
| Bearings | Ball |
| Thermal Protection | Automatic |
| Maximum Ambient Temperature | 40° C |
| Insulation Class | B |
| Duty Cycle | Continuous |
| Cross Reference | BV91 substitutes: A.O. Smith 186128, A.O. Smith 325P465, A.O. Smith ODB1102V1, A.O. Smith S48C18A01, A.O. Smith S48C48A03, Century 181186, Century 181197, Century 181201, Century 186128 |
| Ship Weight | 16 lbs |
