A.O SMITH  |  SKU: EMN-018206

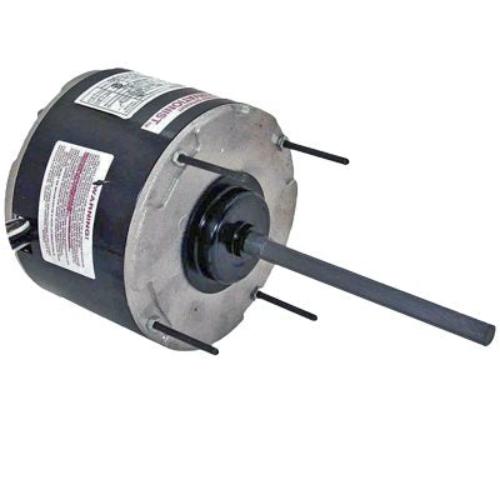

FS1026S, AO Smith, 1/4Hp, 1075 Rpm, 208/230 Volts, Frame: 48Y,

$239.47
shipping

Estimate shipping

Description

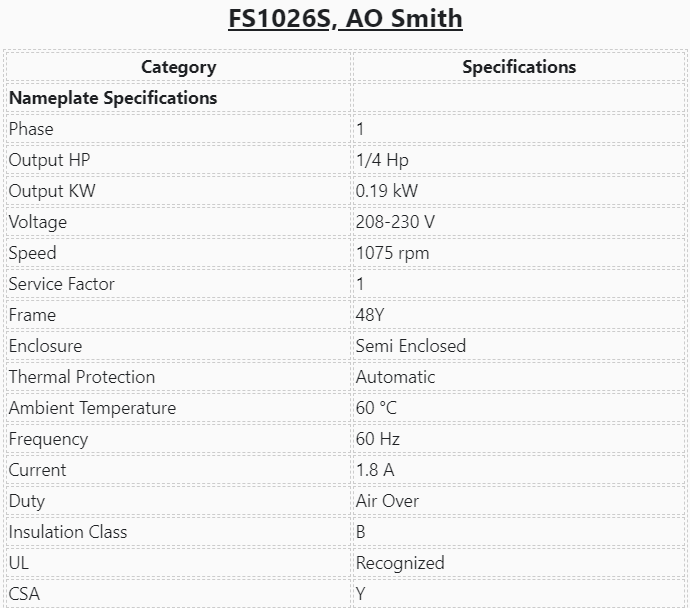

FS1026S, AO Smith

Category Specifications
Nameplate Specifications
Phase 1
Output HP 1/4 Hp
Output KW 0.19 kW
Voltage 208-230 V
Speed 1075 rpm
Service Factor 1
Frame 48Y
Enclosure Semi Enclosed
Thermal Protection Automatic
Ambient Temperature 60 °C
Frequency 60 Hz
Current 1.8 A
Duty Air Over
Insulation Class B
UL Recognized
CSA Y
CE N
Number of Speeds 1
Technical Specifications
Electrical Type Permanent Split Capacitor
Starting Method Across The Line
Poles 8
Rotation Reversible
Mounting Extended Studs
Motor Orientation Any
Drive End Bearing Ball
Opp Drive End Bearing Ball
Frame Material Rolled Steel
Shaft Type Double Flat
Overall Length 10.93 in
Frame Length 3.38 in
Shaft Diameter 0.500 in
Shaft Extension 6.4 in

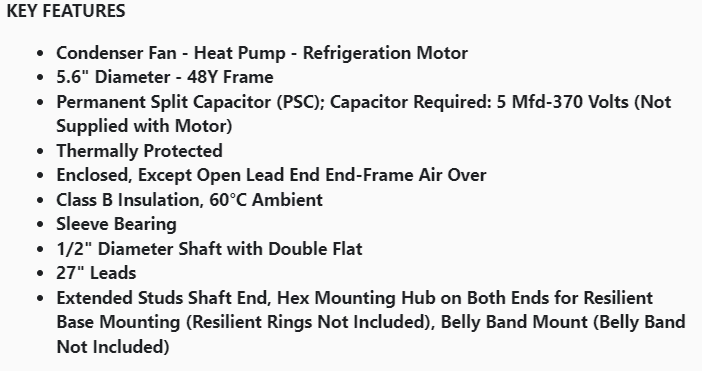

  • Condenser Fan - Heat Pump - Refrigeration Motor
  • 5.6" Diameter - 48Y Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Enclosed, Except Open Lead End End-Frame Air Over
  • Class B Insulation, 60°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 27" Leads
  • Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band Mount (Belly Band Not Included)
