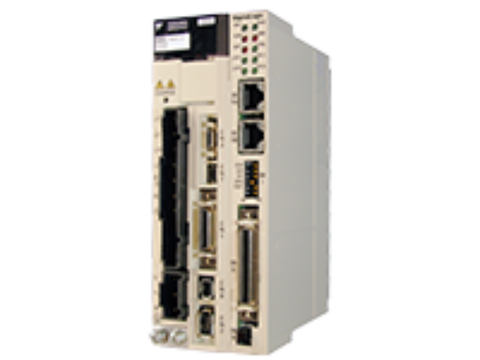

SGDV-3R5D01A002000, Yaskawa, SGDV SigmaLogic, Drive Servomotor, Analog Pulse


  • $3,368.57

SGDV-3R5D01A002000, Yaskawa,

Item Specification
Software SigmaSelect
SigmaWin+ Ver.5
SigmaLogic Software Package
CPU 200 MHz, 32 bit, ARM
Memory SDRAM, 32 MB
SRAM, 512 kB with battery backup
Flash, 4 MB flash. Code and parameter storage
Operator interface LED 10 LEDs (red and green - operating mode, communication and error status)
User Configuration 6x DIP switch (operating mode and communication configuration)
Environmental Conditions Ambient Operating Temperature 0°C to 55°C
Ambient Storage Temperature -20° to 85°C
Ambient Operating Humidity 90% RH or less (with no condensation)
Ambient Storage Humidity 90% RH or less (with no condensation)
Pollution Level Protection class: IP10, Pollutio degree:2
  • Free of corrosive or explosive gases
  • Free of exposure to water, oil, or chemicals
  • Free of dust, salts or iron dust
Operating Altitude 1,000 m above sea level or lower
Mechanical Operating Conditions Vibration Resistance 4.9 m/s2
Shock Resistance 19.6 m/s2
Others Free of static electricity, strong electromagnetic fields, magnetics fields or exposure to radioactivity
Servo-Side Safety Functions Input /HWBB1, /HWBB2: Baseblock signal for power module
Output EDM1: Status monitor (fixed output) of built-in safety circuit
Network Capabilitiy EtherNet/IP
Diagnostic and configuration interface Web interface
Motion control performance

1 controlled axis and one external position input at a trajectory update rate of 1 kHz




The SigmaLogic allows Sigma 5 amplifier motion sequencing and axis control using Rockwell ControlLogix and CompactLogix PLCs via Add On Instructions (AOIs).


  • No other progamming software needed
  • Use direct command or 200 point configurable sequence table
  • Contains all the benefits of the Sigma-5 Servo System

Add-On Instructions

  • Compatible with all CompactLogix and ControlLogix PLCs using RSLogix5000 software v17 and above
  • Familiar to AB users
  • Sample Program in RSLogix5000 available

Sequence Table

  • Create individual move profiles and sequencing for the application with the free LogicWorks utility
  • Download/Upload sequence table and configuration data to or from LogicWorks
  • Embedded monitoring and test functions
