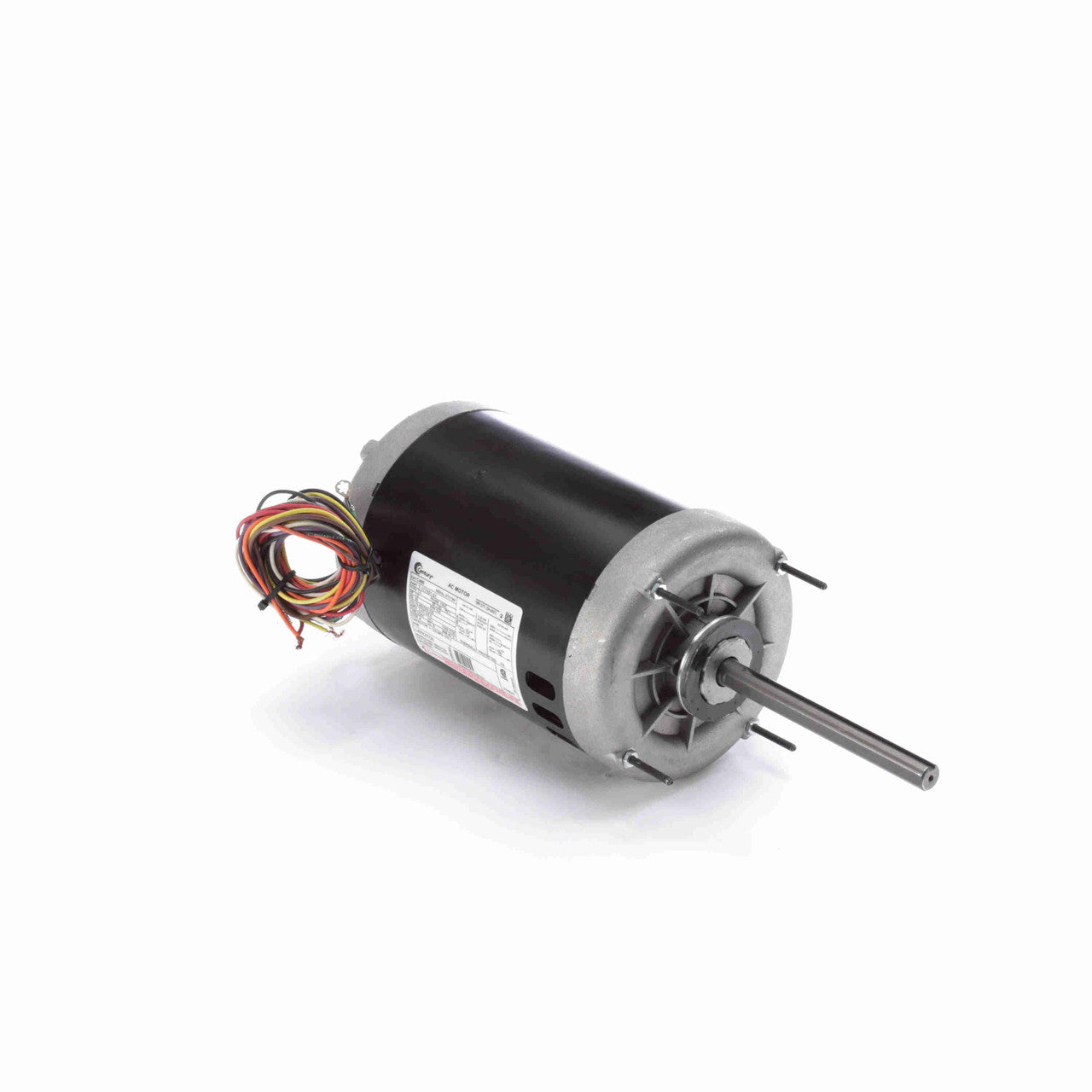

C490, Century, 1Hp, 825R pm, 460/200-230 Volts,Fr:X56Z,Open enclosure,

E-Motor Nations

$1,169.16

C490, Century,

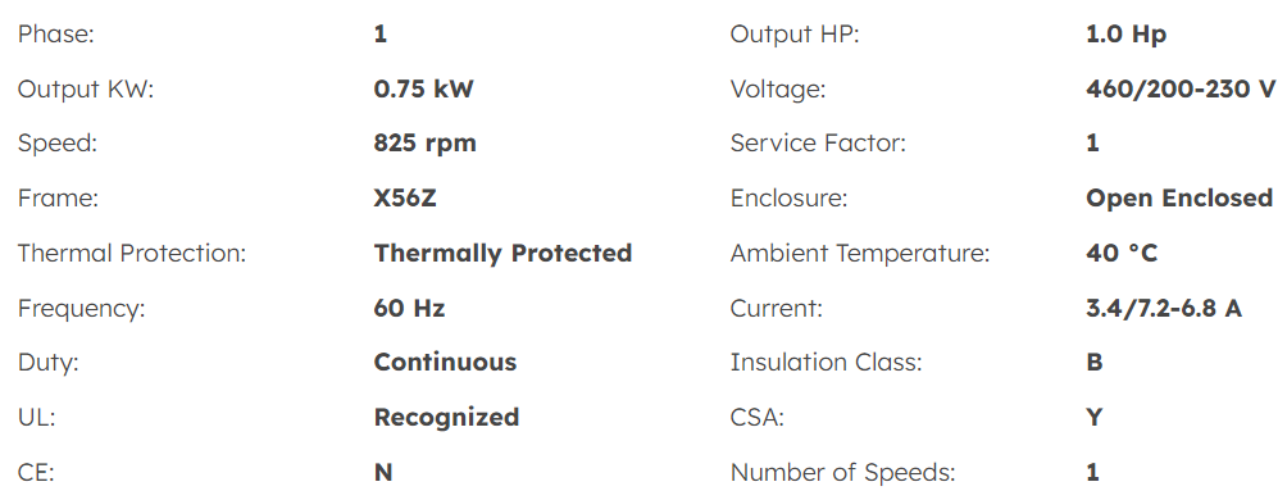

Category	Specifications
Phase	1
Output HP	1.0 Hp
Output KW	0.75 kW
Voltage	460/200-230 V
Speed	825 rpm
Service Factor	1
Frame	X56Z
Enclosure	Open Enclosed
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.4/7.2-6.8 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1
Electrical Type	Permanent Split Capacitor, Single Or Dual Voltage
Starting Method	Across The Line
Poles	8
Rotation	Reversible Counterclockwise
Mounting	Cushion Ring
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	17.50 in
Frame Length	7.50 in
Shaft Diameter	0.625 in
Shaft Extension	6.00 in
