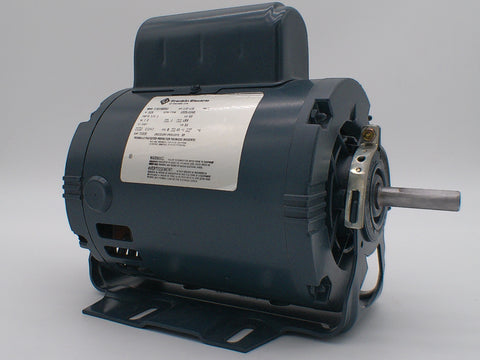

1105160400, Franklin electric, 1/2-1/6Hp, 1725-1140Rpm, 115 Volts, Fr:56, DP,

1105160400, Franklin electric, replaced by H175, Marathon, Model  5KH49PN3026, Replace Us Motors Model 5794C, S063JCK7449724B,

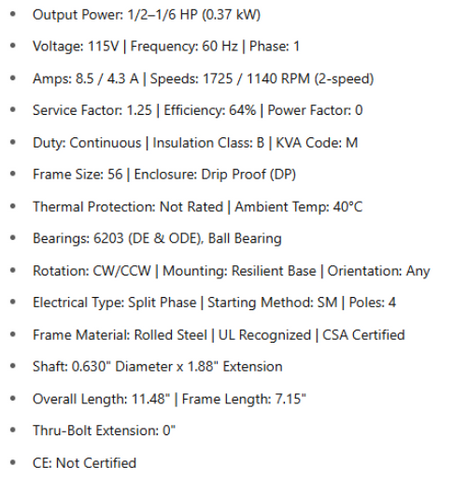

• Output Power: 1/2–1/6 HP (0.37 kW)

• Voltage: 115V | Frequency: 60 Hz | Phase: 1

• Amps: 8.5 / 4.3 A | Speeds: 1725 / 1140 RPM (2-speed)

• Service Factor: 1.25 | Efficiency: 64% | Power Factor: 0

• Duty: Continuous | Insulation Class: B | KVA Code: M

• Frame Size: 56 | Enclosure: Drip Proof (DP)

• Thermal Protection: Not Rated | Ambient Temp: 40°C

• Bearings: 6203 (DE & ODE), Ball Bearing

• Rotation: CW/CCW | Mounting: Resilient Base | Orientation: Any

• Electrical Type: Split Phase | Starting Method: SM | Poles: 4

• Frame Material: Rolled Steel | UL Recognized | CSA Certified

• Shaft: 0.630" Diameter x 1.88" Extension

• Overall Length: 11.48" | Frame Length: 7.15"

• Thru-Bolt Extension: 0"

• CE: Not Certified
