9936, (KBCC-125) SCR DC Drive 1.5Hp 16A 115VAC 1PH Input 90VDC Output Non-Reversing Chassis
9936, (KBCC-125) SCR DC Drive 1.5Hp 16A 115VAC 1PH Input 90VDC Output Non-Reversing Chassis
| Feature | Details |
|---|---|
| Model | KBCC-125 |
| Input Voltage | 115 VAC |
| Motor Type | 90 VDC Permanent Magnet (PM) motors |
| Horsepower Range | 1/100 – 1.5 HP |
| Standard Features | - Remote 5K Speed Potentiometer - Rugged construction |
| Included Components | - Auxiliary Heatsink - Barrier Terminal Block - AC Line & Armature Fuses |
| Additional Features | - AC Line Fuse Holder - Armature Fuse Holder |
| Horsepower Resistor | Required (plug-in type) |
| Fuses Required | Line fuse, resistor, and armature fuse |
| Dimensions (W × L × D) | 6.25" × 7" × 4" |

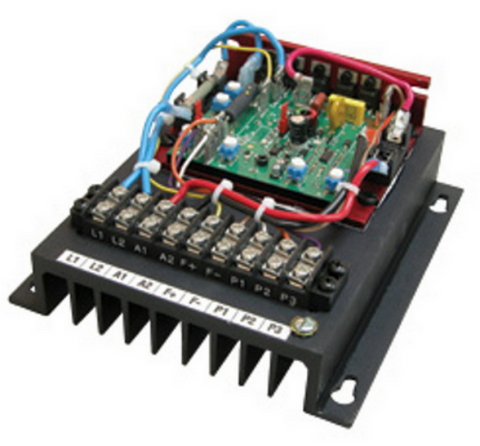

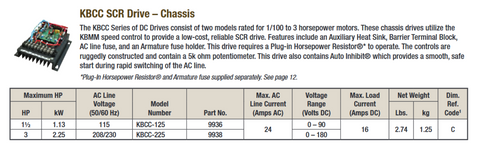

KBCC SCR Drive – Chassis
The KBCC Series of DC Drives consist of two models rated for 1/100 to 3 horsepower motors. These chassis drives utilize the
KBMM speed control to provide a low-cost, reliable SCR drive. Features include an Auxiliary Heat Sink, Barrier Terminal Block,
AC line fuse, and an Armature fuse holder. This drive requires a Plug-in Horsepower Resistor®* to operate. The controls are
ruggedly constructed and contain a 5k ohm potentiometer. This drive also contains Auto Inhibit® which provides a smooth, safe
start during rapid switching of the AC line.
