E-Motor Nations  |  SKU : EMN-017499

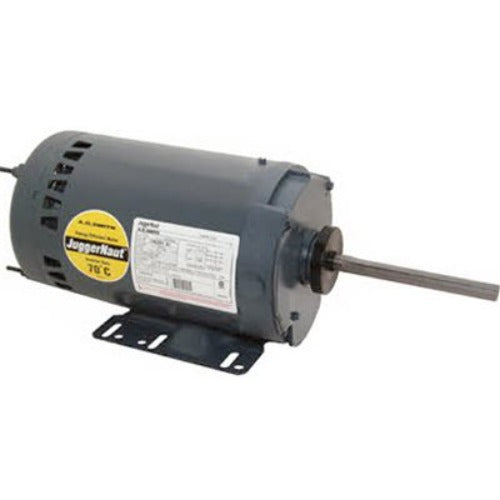

5H1054A, 1.5Hp, 850 Rpm, 3 Amps, Frame:56Y,Reversible,8-187660-01,Odp,

$1,052.20
shipping

Estimation des frais de livraison

Description

5H1054A, Century, 8-187660-01,056T85ORR40004A2,

Nameplate Specifications

Phase: 3 Output HP: 1.5 Hp
Output KW: 1.1 kW Voltage: 575 V
Speed: 850 rpm Service Factor: 1
Frame: 56HZ Enclosure: Open Air Over
Thermal Protection: Thermally Protected Efficiency: 70 %
Ambient Temperature: 70 °C Frequency: 60 Hz
Current: 2.6 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Line Or Inverter
Poles: 8 Rotation: Reversible
Mounting: Bolt-on Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Special Extension Frame Length: 9.65 in
Shaft Diameter: 0.625 in Shaft Extension: 6.00 in

General Specifications

UPC: 786674076137 Weight: 34.48 LB
Packaged Length: 23.00 IN Packaged Width: 10.00 IN
Packaged Height: 9.00 IN Country of Origin: Mexico
  • High operating temps, Rated 70°C (158°F) Max Ambient temperature
  • Patented Max Guard® insulation system ensures dependable motor life under the adverse thermal and dielectric stresses imposed by the high switching frequencies of PWM medium voltage drives
  • VCD™ Voltage Change Device enables quick 230V or 460V voltage selection
  • Double sealed ball bearings are pre-lubricated with a special formulation for moisture resistance and provide extra-long life
  • Automatic reset thermal protector protects against motor overload and automatically resets
  • Non-conductive greased bearings
  • UL® recognized and CSA® certified
