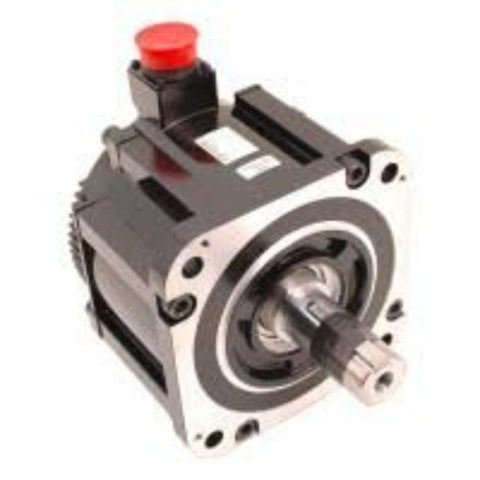

SGMGV-09D3A61, Yaskawa, 850W, 400V, replace SGMGV-09D3E61, Servo Motor

YASKAWA

$2,523.26

Yaskawa

Servo Motors, SGMGV Series

Item# SGMGV-09D3A61 - S5 MTR 850W 400V ABS KY TP

SGMGV Series Information

Mounted High Resolution Serial Encoder: 20 bit
Max Speed: 3000 rpm
Medium Inertia
Holding Brake and Shaft Seal Options Available
Protective Structure IP67

The SGMGV medium capacity brushless servomotor can be used in a variety of applications, such as Machine tools, Transfer machines, Material handling machines, and Food processing equipment. Both protective structure IP67 and European safety standards compliant.

Specifications

Item Number:

SGMGV-09D3A61
Yaskawa
Servo motor
Series:SGMGV
Product Series:Sigma 5
kW:0.85 KiloWatts
Voltage:400 VAC
Servomotor
Rated Speed:1,500 RPM
Max Speed: 3000 RPM
Mounting Type:Flange Mount
Encoder Type:Absolute
Encoder Bit Resolution:20 BIT
Constant Torque (Nm):5.39
Peak Torque (Nm):13.8
Constant Torque (Oz-In):763.3
Peak Torque (Oz-In):1,954.3
IP Rating:IP67
Approvals:UL; CE; cUL Recognized

H x W x D:

7.68 in x 5.12 in x 5.12 in
