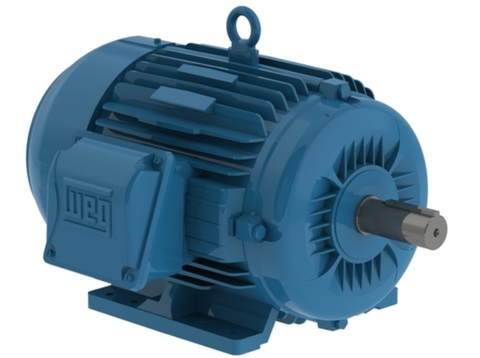

HT005506NPW22, W22 NEMA Premium Efficiency 5Hp 1170 RPM 6P 213/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

HT005506NPW22,  W22 NEMA Premium Efficiency 5Hp 1170 RPM 6P 213/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

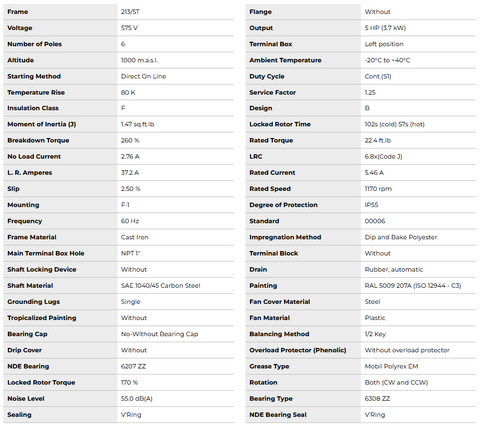

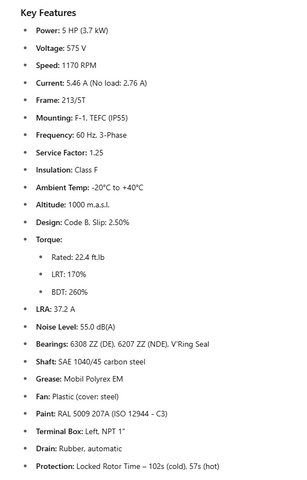

Key Features

• Power: 5 HP (3.7 kW)

• Voltage: 575 V

• Speed: 1170 RPM

• Current: 5.46 A (No load: 2.76 A)

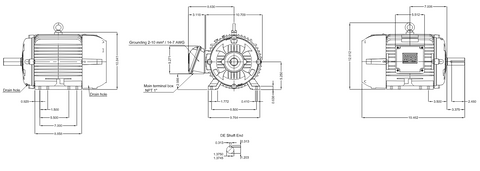

• Frame: 213/5T

• Mounting: F-1, TEFC (IP55)

• Frequency: 60 Hz, 3-Phase

• Service Factor: 1.25

• Insulation: Class F

• Ambient Temp: -20°C to +40°C

• Altitude: 1000 m.a.s.l.

• Design: Code B, Slip: 2.50%

• Torque:

  • Rated: 22.4 ft.lb

  • LRT: 170%

  • BDT: 260%

• LRA: 37.2 A

• Noise Level: 55.0 dB(A)

• Bearings: 6308 ZZ (DE), 6207 ZZ (NDE), V'Ring Seal

• Shaft: SAE 1040/45 carbon steel

• Grease: Mobil Polyrex EM

• Fan: Plastic (cover: steel)

• Paint: RAL 5009 207A (ISO 12944 - C3)

• Terminal Box: Left, NPT 1"

• Drain: Rubber, automatic

• Protection: Locked Rotor Time – 102s (cold), 57s (hot)
