GRA0034D-01, 3Hp, 1800 RPM, 3 Phase, 230/460V, 182T Rigid, TEFC NEMA Premium

E-Motor Nations

$813.79

GRA0034D-01, TechTop 3Hp, 1800 RPM, 3 Phase, 230/460V, 182T Rigid, TEFC NEMA Premium

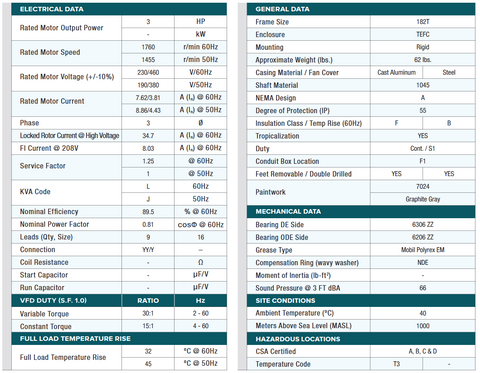

Category	Specification
Power	3 HP
Rated Speed	1760 r/min (60Hz) / 1455 r/min (50Hz)
Rated Voltage	230/460 V (60Hz) / 190/380 V (50Hz)
Rated Current	7.62/3.81 A (60Hz) / 8.86/4.43 A (50Hz)
Phase	3 Ø
Service Factor	1.25 (60Hz) / 1.0 (50Hz)
Nominal Efficiency	89.5% (60Hz)
Power Factor	0.81 (cosφ)
Frame Size	182T
Mounting Type	Rigid
Enclosure	TEFC (Totally Enclosed Fan Cooled)
Degree of Protection	IP55
Material (Casing/Fan Cover)	Cast Aluminum / Steel
Shaft Material	1045 Steel
Bearings	DE: 6306 ZZ / ODE: 6206 ZZ
Grease Type	Mobil Polyrex EM
Noise Level	66 dBA @ 3 ft
Weight	62 lbs
Duty Cycle	Continuous (S1), Tropicalized
VFD Duty Rating	30:1 Variable Torque (2-60 Hz) / 15:1 Constant Torque (4-60 Hz)
Certification	CSA Certified, T3 Temperature Code
