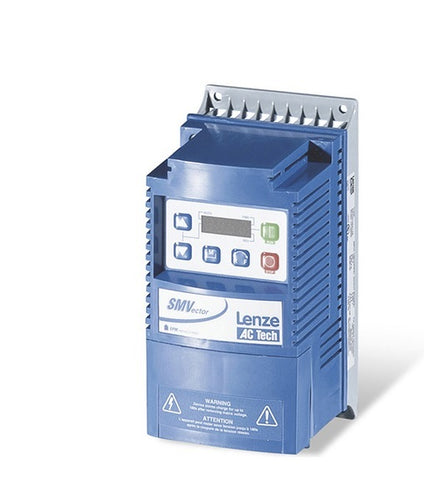

ESV402N06TXB, Lenze, 5 Hp, 600V, 3Ph Nema1, 174634.00, VFD, Drives,

ESV402N06TXB, Lenze, 5 Horse power, 600V, 3Ph Nema1, 174634.00

Lenze / AC Tech

$1,145.47

ESV402N06TXB, Lenze, Replace Leeson 174634.00,

SMV SERIES SENSORLESS 5 Horse Power / 600V, 3PH(i/p) / 6.1A(o/p) Cont. / NEMA1

PRODUCT DETAILS

SMV Series Drive
NEMA 1
600 Volt Three Phase Input
5 hp Power Rating
6.1 A Output Current

DESCRIPTION

The SMV series drive delivers unparalleled performance and simplicity. The SMV series drive is the right choice when you need it all – performance, power, packaging and intuitive programming.

APPLICATIONS

Food processing machinery
Packaging machinery
Material handling
Conveying systems
HVAC systems

FEATURES

NEW sequencer function
V/Hz through control
Up to 60 hp
NEMA® 1 and NEMA® 4X enclosures
Flexible power ranges
Industrial grade packaging
Intuitive user interface
Electronic programming module
Exceptional starting torque
Load: constant torque or variable torque
Dynamic speed regulation
Quick acceleration
Two-year warranty
Original Integrated E- M- C Filters are available on NEMA® 4X drives to meet CE regulations

SPECIFICATIONS

EMC FILTER	No
INPUT VOLTAGE	600
ENCLOSURE	NEMA 1
LOAD TYPE	Constant Torque, Variable Torque
INVERTER OR V DUTY	V Duty
INPUT PHASE	Three Phase

POWER RATING	5 hp
OUTPUT CURRENT CONTINUOUS AMPS	6.1 A
INSTALLED I/O & COMMUNICATION MODULE	No Communications Installed / Standard Keypad
INTEGRATED LINE DISCONNECT	No
CONTROL SERIES	SMV
WEIGHT	4.4 LB
